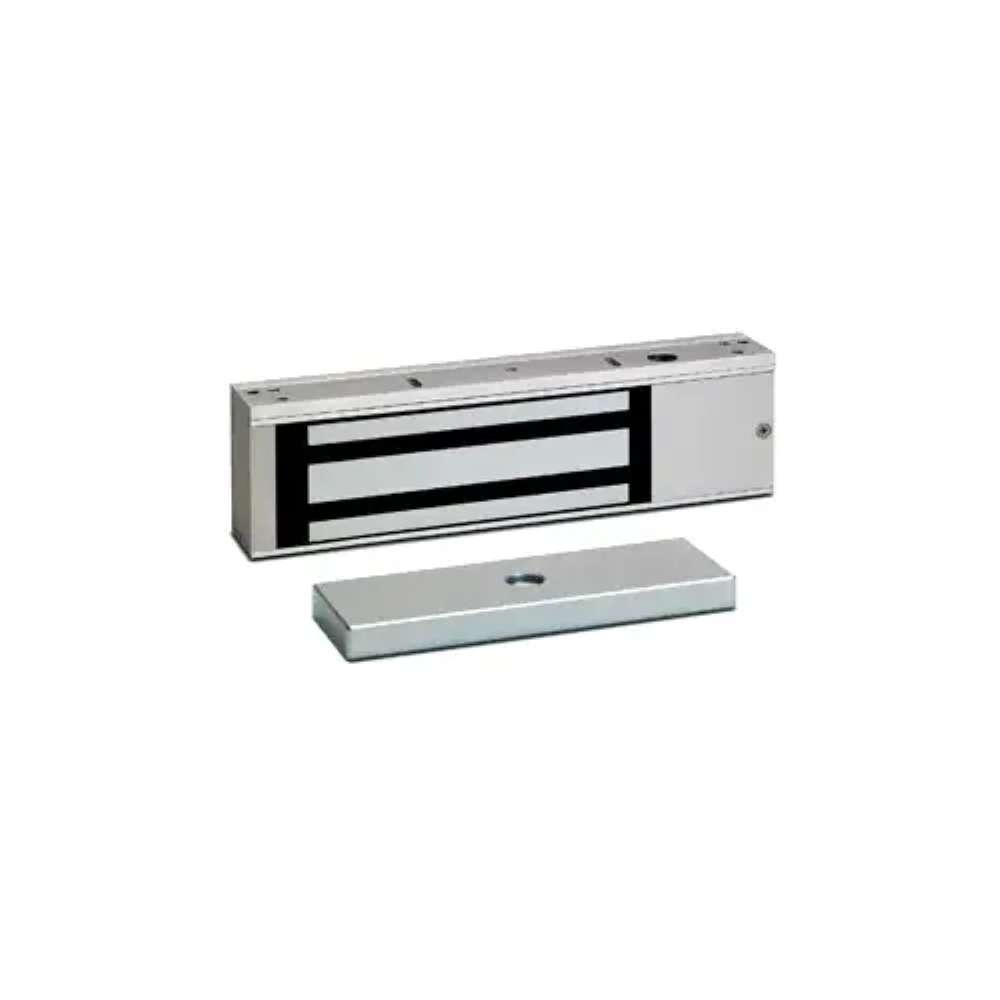

Hager 2942-ALM Single Magnetic Lock 1200lb Holding Aluminum
Magnetic Lock 1200 lbs Holding Force
Applications
- For perimeter and interior door security and access control
- For system integrators, distributors, installers, and building owners presently using low cost import or private label brand access control hardware
Certifications
ANSI/BHMA A156.23 Grade 1 Compliant
Circuitry/Wiring
- PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input and status outputs
- Electrical Specifications
- 500mA @ 12VDC | 250mA @ 24VDC - Power Input (Field Selectable)
- SPDT, dry 500mA @ 30VDC - Door Status Sensor
- SPDT, dry 2A @ 30VDC - Lock Status Sensor
Finishes ALM
Holding Force 1200 lbs
LED Indicators
- Red - Energized & Unsecured
- Green - Energized & Secure
Size
- Lock: 10-1/2" (l) x 2-7/8" (h) x 1-5/8" (d)
- Armature: 7-5/16" (l) x 2-3/8" (h) x 1/2" (d)
