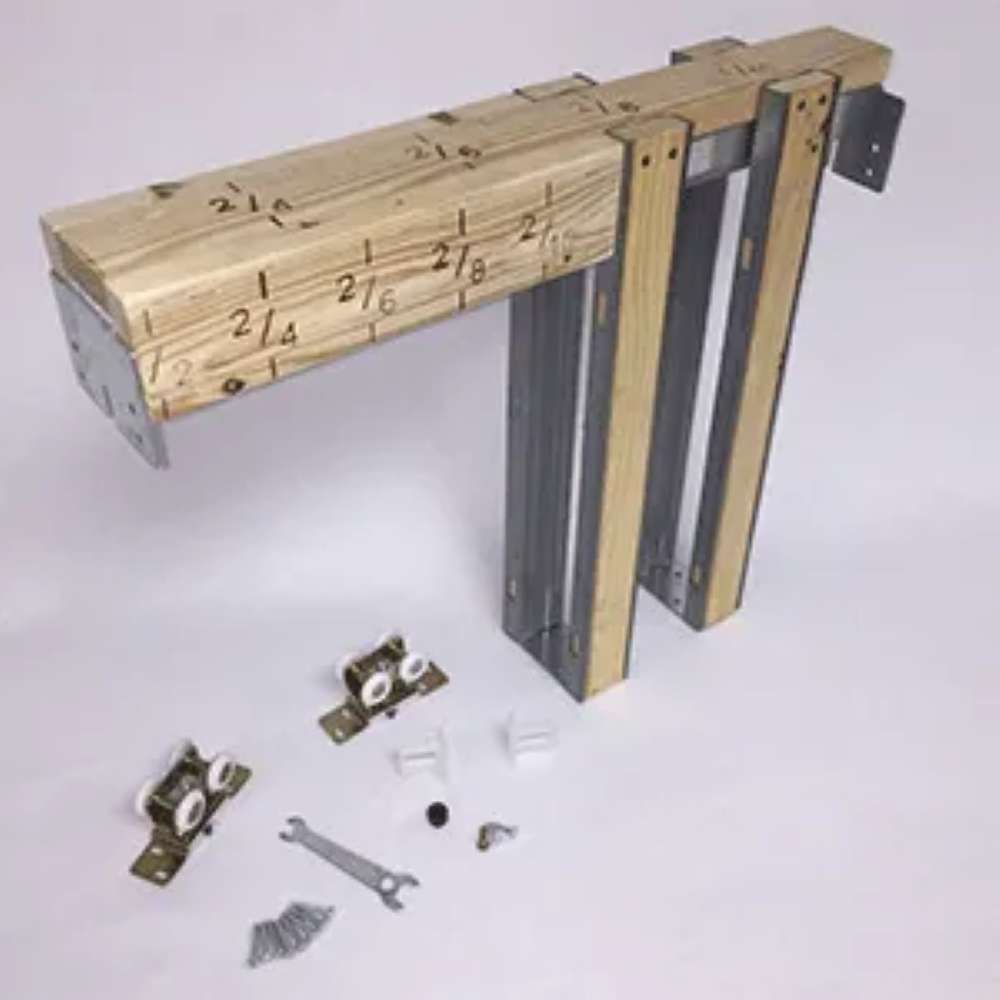

Hager 9628CS-108-2x4 108in 150Lb 2x4 Hvy Duty Pocket Door
Certifications ADA Compliant
Conforms To ANSI A156 14 (Grade 1), Type: D02311-150
Door Specifications: Up to 3'0" (914 mm) wide and 9'0" (2743mm)
Door Thickness: For doors 1-3/8" - 1-3/4" (35mm - 44mm) thick
Installation
- For Bi-Parting Doors use Hager Double Pocket Door Kit 9639 (sold separately)
- Joins 2 pocket door frames to make one large doorway. Rough opening width changes to 4 times one door width. See Related Files for additional information.
Maximum Door Weight: 150 lbs (68 kg)
Notes
For kit contents see Installation Instructions
Options
Soft Close mechanism (1-269-8651) is available, sold separately. See Related Files for additional information. (Use of Soft Close mechanism exceeds ADA 5 lb. of opening force threshold)
Specifications
- V-groove jump-proof aluminum track
- Pre-assembled header assembly goes up quickly
- Easy door installation and removal for painting and repair 3/4" (19 mm) x 1-3/4" (44 mm)
- Split Studs Split Studs are steel encased wood for rigidity and to prevevent fastener penetration into the pocket
- Header assembly attaches to rough-in framing at both ends
- Split studs can be nailed or screwed to the Header Assembly
