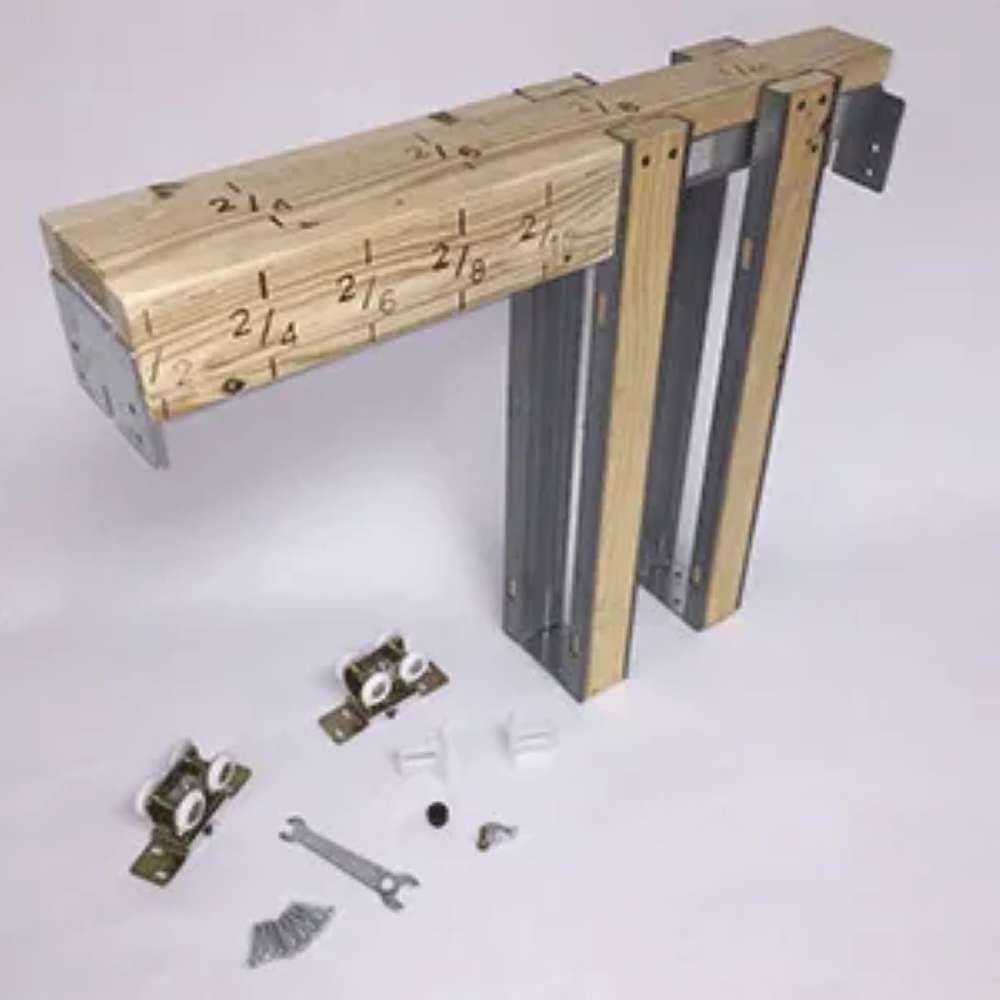

Hager 9631CS-80-2x7 80in 150Lb 2x4 Commercial Pocket Dr Kit
For 3'0" wide x 6'8" high doors up to 150 lbs (68 kg) per door.
Certifications Meets performance requirements of ANSI/BHMA 156.14 (Grade 1) f
Type: D02311-250
ADA Compliant
- Conforms To ANSI A156 14/ Type: D8671, D8701
Door Specifications Up to 3'0" (914 mm) wide and 6'8" (2032 mm) high
Door Thickness For doors 1-3/8" - 1-3/4" (35mm - 44 mm) thick
Installation
- For Bi-Parting Doors use Hager Double Pocket Door Kit 9639 (sold separately)
- Joins 2 pocket door frames to make one large doorway. Rough opening width changes to 4 times one door width
Maximum Door Thickness 1-3/4" (44 mm)
Notes For size options review the Size Options chart,For kit contents see Related Files
Options
- Soft Close mechanism (1-269-8651) is available, sold separately. (Use of Soft Close mechanism exceeds ADA 5 lb. of opening force threshold)
- See Related Files for additional information.
