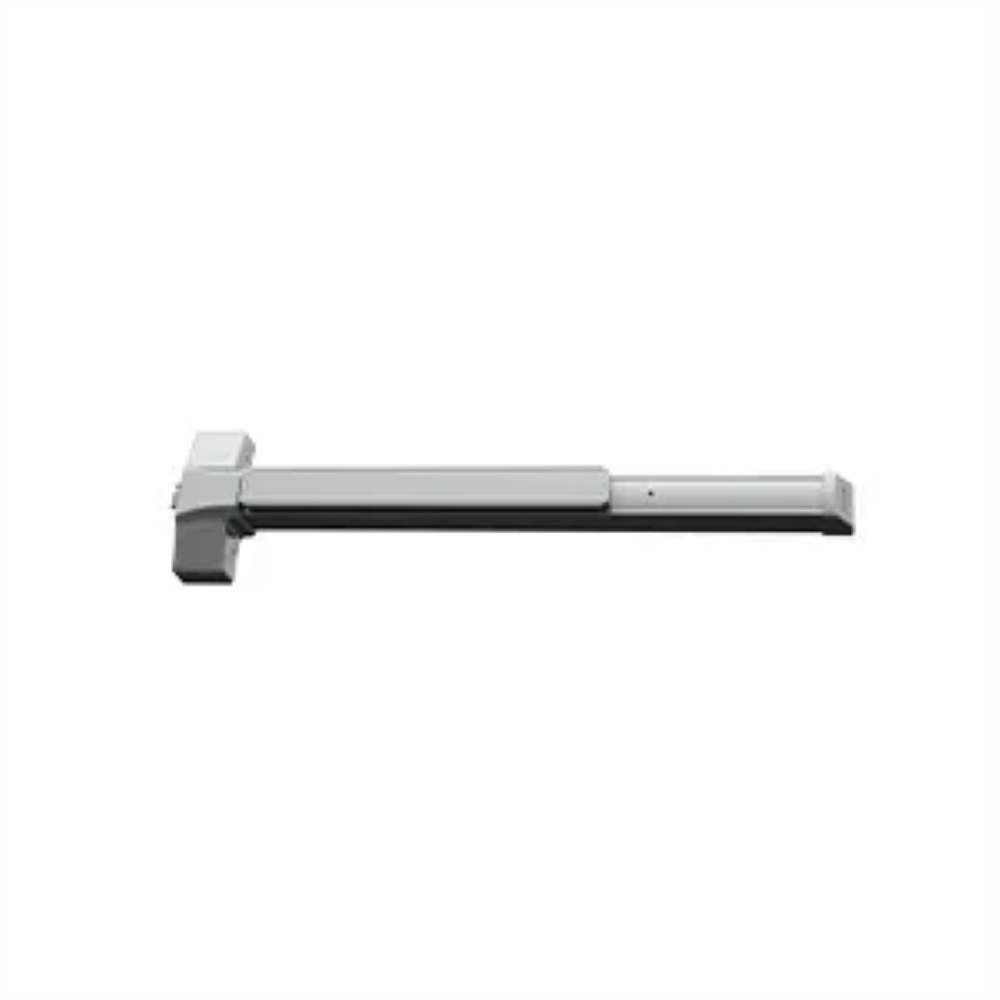

Hager 4501-32D-3 Exit Device Steel 36in Rim exit device
Applications
Heavy Duty Commercial
Certifications
- ANSI/BHMA A156.3-2014 Grade 1
- UL305 Listed for Panic Hardware
- UL/cUL Listed for up to 3 hours for "A" label single doors
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Warnock Hersey listed for up to 3 hours with fire rated removable mullion
- Complies with ANSI A117.1 for accessible buildings and facilities
- Miami-Dade County, Florida NOA #22-0816.08, Exp. Aug. 16, 2027
Cover Stainless steel, zinc
Cover Tube Aluminum
- Dogging Hex key dogging standard on panic rated devices
- Cylinder dogging available on panic rated devices - specify "CD". 3902 Mortise cylinder with standard cam sold separately. Cylinder Length of 1-1/8" (29mm) - 1-3/8" (35mm) is required.
Door Thickness
- 1-3/4" (44mm) - Standard
- Up to 3" except with night latch which has a max of 2-1/2". Screwpack (SKU# 172214) is needed for use on doors over 2" thick with sleeve nuts or doors over 2-1/4" thick with trim.
Door Width
- 36" (914mm) field sizeable to 30" (762 mm) panic-rated door and 28" (711mm) fire-rated door
- 48" (1219mm) field sizeable to 36" (914mm) panic- or fire-rated door
- Reference electrified exit device for door width specifications
- End Caps Flush end cap (zinc)
Fasteners Wood and machine screws
Finishes US3, US4, US10B, US26, US26D, US32D, BLK
- Trim is not available in US32D
Functions 01 - Exit Only (device)
Latchbolt Type
3/4" (19mm) throw, pullman type with automatic dead-latching, stainless steel
Projection
- 3" (76mm) in undogged position
- 2-5/8" (67mm) in dogged position
Push Bar
- OPTIONAL Photoluminescent push bar cover available
Stile Width
- 5-3/8" (137mm) - Minimum stile width required for single doors and standard 5/8" (16 mm) stop
- 4-7/8" (124mm) - Minimum stile width required for double door x surface vertical rod with double door strike
- 5-3/4" (146mm) - Minimum stile width required for double door and 2" (51 mm) mullion
- 5" (127mm) - Minimum stile width required for double doors with a middle rail and a 2" mullion
- All stile widths are measured from the door edge
Strikes
- Stainless steel with plated rollers - Included standard with panic devices
- Solid stainless steel - Included standard with fire-rated devices
- Surface applied to frame with slotted holes for easy adjustment
- Double door strike for use with surface vertical rod and rim device available
- For Rim x Rim x Mullion the 4912 strike is required on a fire-rated opening
Trim
- Archer, August, Charles, Johnston, Joshua, Louis, Warren, William or Withnell lever with escutcheon
- Pull plate trim
- Rim cylinder x optional pull
- See additional options under Trim
