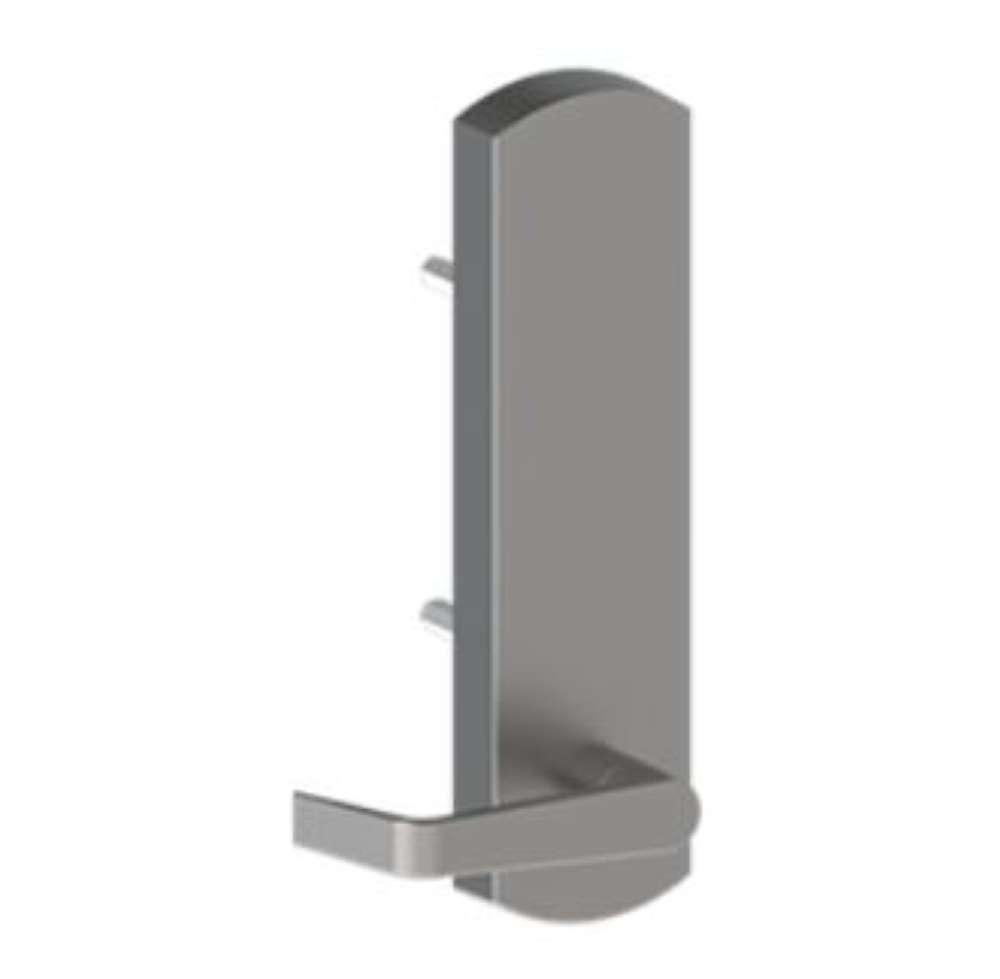

Hager 45DT-US26D-AUG Dummy Trim Chrome August
BE - Blank Escutcheon Function 14, always operable
CE - Cylinder Escutcheon Function 08, key locks/unlocks
DT - Dummy Trim Function 02, pull when dogged down
ET - Electric Escutcheon Trim (E05/E06)
NL - Night Latch (1-3/4” to 2-1/2” doors) Function 03, key retracts latchbolt
PD - Pull Plate Dummy Trim (Not available for CVR device)
PN - Pull Plate Night Latch (Not available for CVR device) Function 03, key retracts latchbolt
PT - Thumbpiece Entrance (Not available for CVR device) Function 05, key locks or unlocks thumbpiece3
MB - Mortise Blank Escutcheon4 Function 14, always operable
MC - Mortise Cylinder Escutcheon4 Function 08, key locks/unlocks
MD - Mortise Dummy Trim4 Function 02, pull when dogged down
MN - Mortise Night Latch4 Function 03, key retracts latchbolt
Certifications
- ANSI/BHMA A156.3-2014 Grade 1
- Complies with ANSI A117.1 for accessible buildings and facilities
Cylinders/Cores
- Requires a 3902 mortise cylinder (1-1/8" - 1-3/8") with standard cam, sold separately
- Escutcheons
- 2-3/4" x 10-3/4" (70mm x 273mm)
Finishes US3, US4, US10B, US26, US26D, BLK
Lever Options
Archer, August, Charles, Johnston, Joshua, Louis, Warren, William, Withnell (lever is free-wheeling when locked)
Projection
2-13/16" (71mm) for Archer; 2-7/8" (73mm) for August; 3-3/8" (86mm) for Charles; 3-1/16" (78mm) for Johnston; 3-17/32" (90mm) for Joshua; 3-3/16" (81mm) for Louis; 3-13/32" (87mm) for Warren; 3-1/2" (89mm) for William; 2-11/16" (68mm) for Withnell
