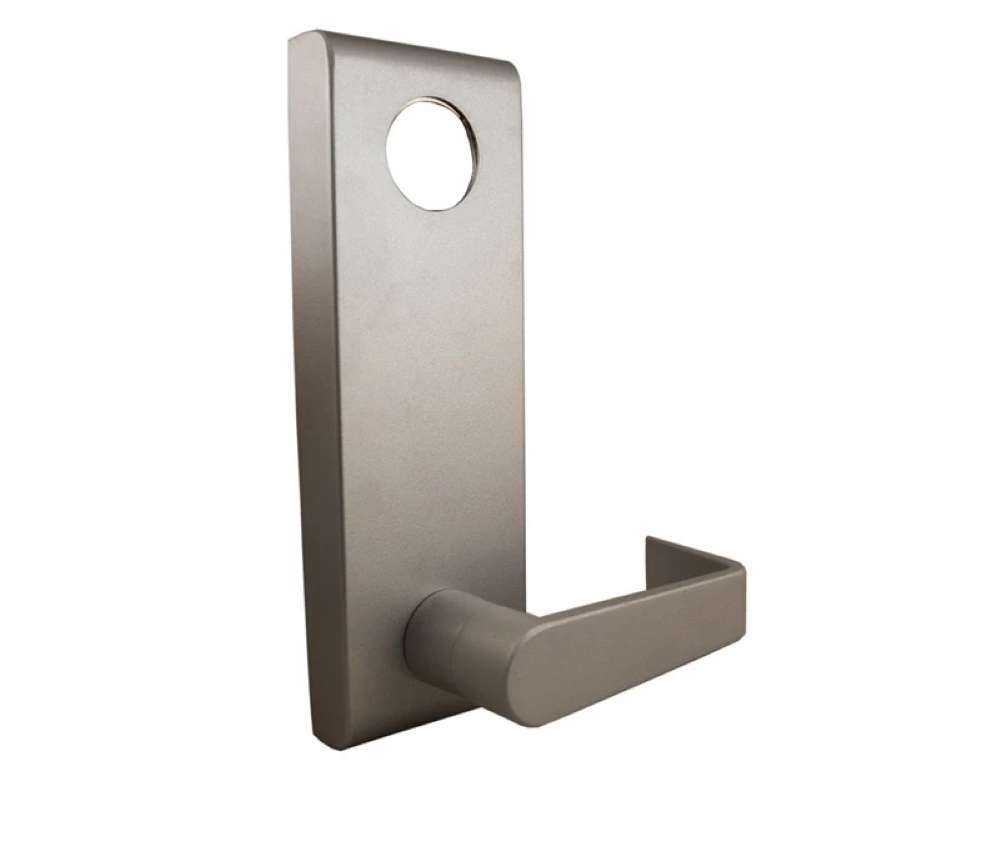

Hager 47NL-US32D-WTN-LHR-NC NghtLatch Stl Withnell LHR NoCyl
BE - Blank Escutcheon Function 14, always operable
CE - Cylinder Escutcheon Function 08, key locks/unlocks
DT - Dummy Trim Function 02, pull when dogged down
ET - Electric Escutcheon Trim (E05/E06)
NL - Night Latch (1-3/4” to 2-1/2” doors) Function 03, key retracts latchbolt
PD - Pull Plate Dummy Trim (Not available for CVR device)
PN - Pull Plate Night Latch (Not available for CVR device) Function 03, key retracts latchbolt
PT - Thumbpiece Entrance (Not available for CVR device) Function 05, key locks or unlocks thumbpiece3
MB - Mortise Blank Escutcheon4 Function 14, always operable
MC - Mortise Cylinder Escutcheon4 Function 08, key locks/unlocks
MD - Mortise Dummy Trim4 Function 02, pull when dogged down
MN - Mortise Night Latch4 Function 03, key retracts latchbolt
Certifications
- Meets ANSI/BHMA A156.3-2014 Grade 1
- Complies with ANSI A117.1 for accessible buildings and facilities (levers only)
Cylinders/Cores
- Requires a 1-1/4" or 1-3/8" long 3902 mortise cylinder with standard cam, sold separately
Escutcheons
- 2-7/8" x 8" (67 mm x 203 mm)
Finishes: US3, ALM, DBZ, US32D
Handing: Specify when ordering
Lever Options: Archer, August, Withnell
Notes: 4700 trim have steel bodies and zinc handles. The exception being US32D which has a stainless steel body.
Projection: 2-7/8" (73 mm) for Archer; 2-7/8" (73 mm) for August; 2-3/4" (70 mm) for Withnell
