Hager 1150-4.5x4.5-US32D UL Stainless Spring Hinge 4 5x4.5

Zoom SALE

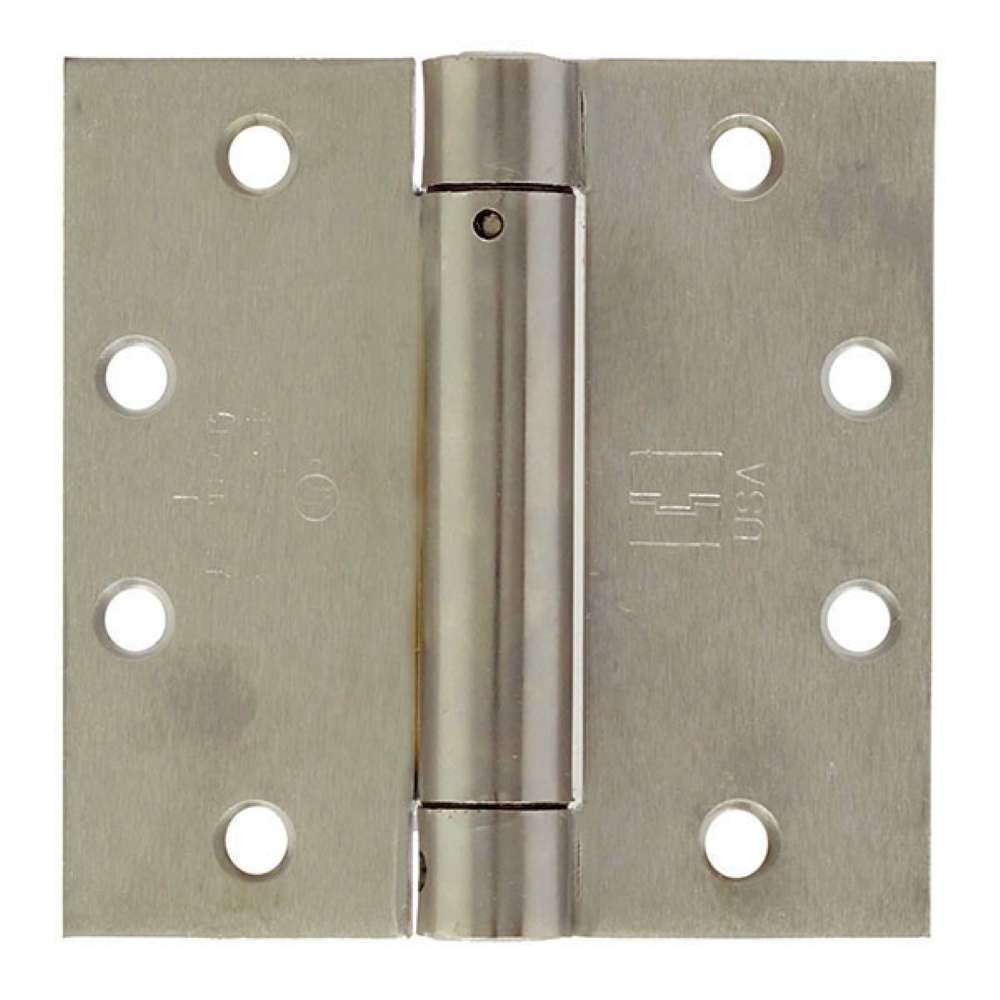

Hager 1150-4.5x4.5-US32D UL Stainless Spring Hinge 4 5x4.5

SKU # HG/1150-45X45-US32D

Read Review(s) | Log in to Review

For use on 1-3/4” (45 mm) thick doors
UL approved for use on doors 4’0” x 8’0”, but Hager does not recommend using spring hinges on doors over 7’0” in favor of hydraulic door closers.
For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing or anti-friction hinges. Do not use plain bearing hinges. Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges. Full spring tension may not be required on all hinges.
Doors over 3’0” x 7’0” or over 100 lbs. require three spring hinges. Doors 150-180 lbs. require four spring hinges.

US$75.14

Qty:

Description:

Description:

Hager 1150-4.5x4.5-US32D UL Stainless Spring Hinge 4 5x4.5

Certifications

ANSI K51071F

Fastener Size - Wood #12 x 1-1/4"

Fastener Size - Machine 12-24 x 1/2"

Finishes US32, US32D, L1

Knuckles 3

Material Stainless Steel with Stainless Steel Pin

Options

Available with hospital tip (HT) - voids UL.
Available with raised barrel (RBB/RBS) - UL approved.

Product Description Full Mortise, Spring Hinge, Standard Weight
