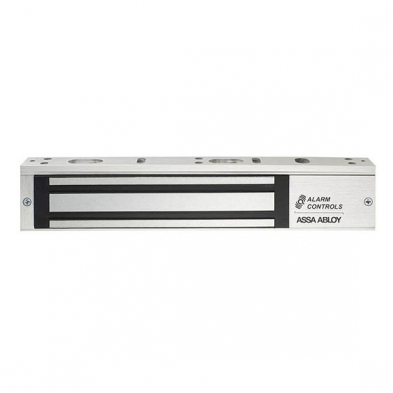

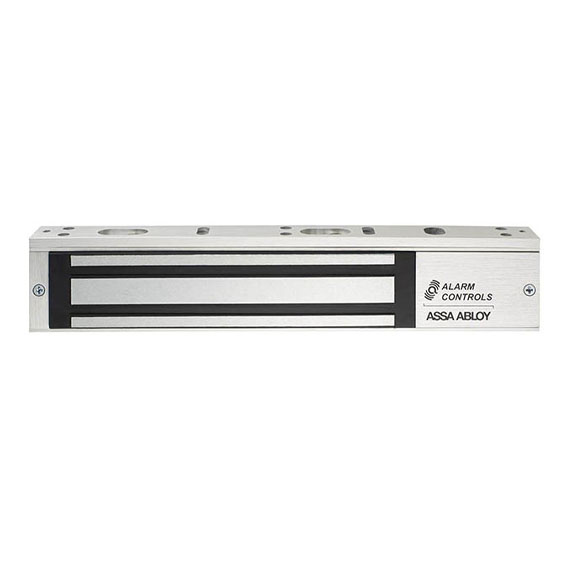

Alarm Controls 600S 600 Lbs. Single Door Magnetic Lock

SKU # AL/600S

Product Features:

  • 600S Standard model
  • 600L Magnetic lock with red LED status indicator
  • 600LB Magnetic lock with red LED status indicator, bond sensor, and door status sensor
  • Built-in arc suppression
  • Instant release, no hysteresis
  • Self-drilling TEC screws
  • Non-aluminum parts are plated to resist corrosion
  • E-Z mount header bracket and template provided for easy installation, no special tools required
  • Can be used with any access control system
  • Clear anodized (US28) finish standard
  • Limited lifetime warranty

Options:

  • DURO Duranodic finish (US 40) available, specify when ordering
  • Dress covers in polished chrome and brass available. See "Magnetic LockAccessories" for options.
US$127.20

Description:

Description:

Bracket mounted, single magnetic lock with 600 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications. Available with LED, bond sensor and door status signalling options.

Specifications:

Specifications:

Certifications & Listings

  • UL 294 listed
  • UL 10C fire rated
  • CAN/ULC-S104 fire door conformant
  • UL 864 listed
  • CAN/ULC-S527 listed

Holding Force: 600 lbs

Dimensions:

  • Magnet size: 9-7/8" L x 1-11/16" H x 1" W
  • Armature size: 7-1/4" L x 1-1/2" H x 1/2" W

Electrical

  • 12 or 24 VDC, field selectable
  • Current draw: 505 mA at 12 VDC, 260 mA at 24 VDC
  • 600LB bond sensor has SPDT 3A relay contacts

Operating Temperature: +14 to +131F [-10 to +55C]
