ACSI 5BB145X456521104 Mort Hng 5Knc 4in4.5in5in 4 wire Ives
ACSI Series 1100 Electric Hinges/Pivots are designed for doors that require concealed low voltage power transfer, concealed electric monitoring or concealed low voltage power transfer with monitoring. ACSI Series 1100 products are UL Listed and carry a full three-year warranty.

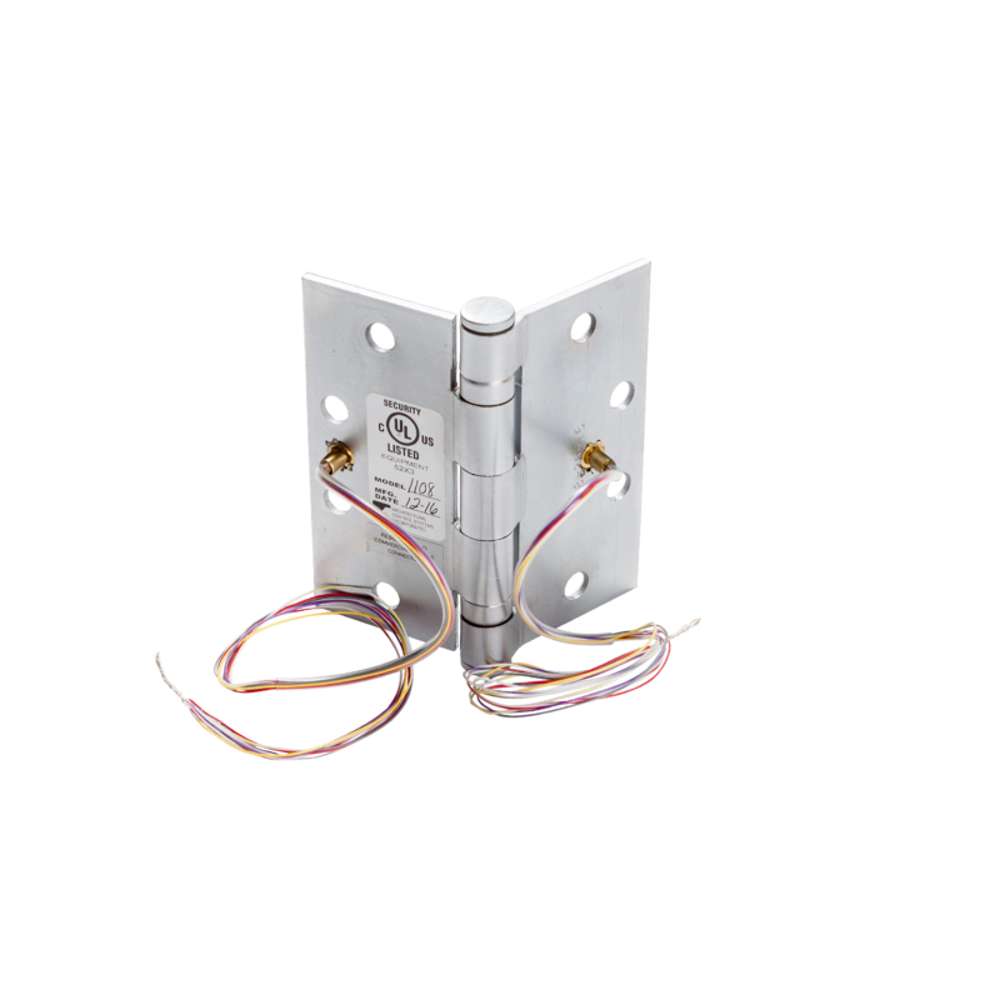

1104 Concealed electric through-wire (4 wire, 26/28ga)
1108 Concealed electric through-wire (8 wire, 26/28ga
Options
- Custom wire lead lengths
- Universal Molex® Connectors
- Connectors available inHager, ASSA or Ives specifications
Electrical Specifications
Concealed Electric Through-Wire
- 22ga, 26ga, 28ga conductors, 12 inch wire lead length both sides
- 3.5A continuous @ 50VAC/VDC
- 16A pulse @ 50VAC/DC
- 400msec maximum pulse-width
- 10sec minimum off-time between pulses
- 18ga conductors, 12 inch wire lead length both sides
- 10A continuous @ 50VAC/VDC
- 20A inrush @ 50VAC/DC for 4sec
Concealed Electric Monitor
