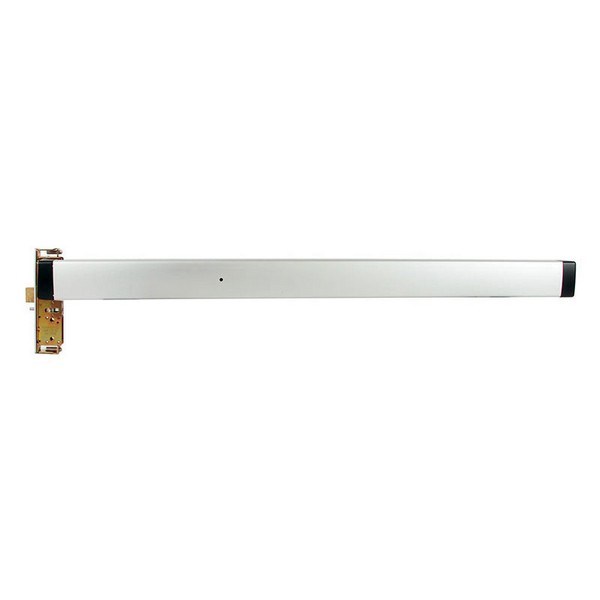

Adams Rite 8400 Exit Devices

SKU # 8400

  • Heavy duty deadlatching mechanism
  • Strong, durable construction for a high level of security
  • Easy to install
  • Clean, unobtrusive design
  • Pushbar clad or anodized, not plated
  • Fits standard cutout used for the Adams Rite MS® Deadlock on aluminum stile glass doors
Pricing varies based on options selected below.
US$476.13

Specifications:

Specifications:

  • 8400 Series Certifications:
    • • UL 305 Panic Hardware
    • • ANSI/BHMA A156.3 Grade 1
    • • California State Fire Marshall
    • • New York City MEA
  • Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
  • Handing: Specify handing and bevel if applicable. Lever Entry Trim is field reversible.
  • Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
  • Backset: Backsets available in 31/32”, 1-1/8”, and 1-1/2”
  • Door Thickness: Suits 1-3/4” standard. Can be modified for thicker doors.
  • Stile Width: Minimum 2” Stile. Fits narrow, medium, and wide stile aluminum doors.
  • Projection: 2-5/8” when fully projected, 1-5/8”when dogged.
  • Dogging: Standard dogging with hex key or cylinder dogging option. Electric dogging also available.
  • Fasteners: Standard self-tapping screws.
  • Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
