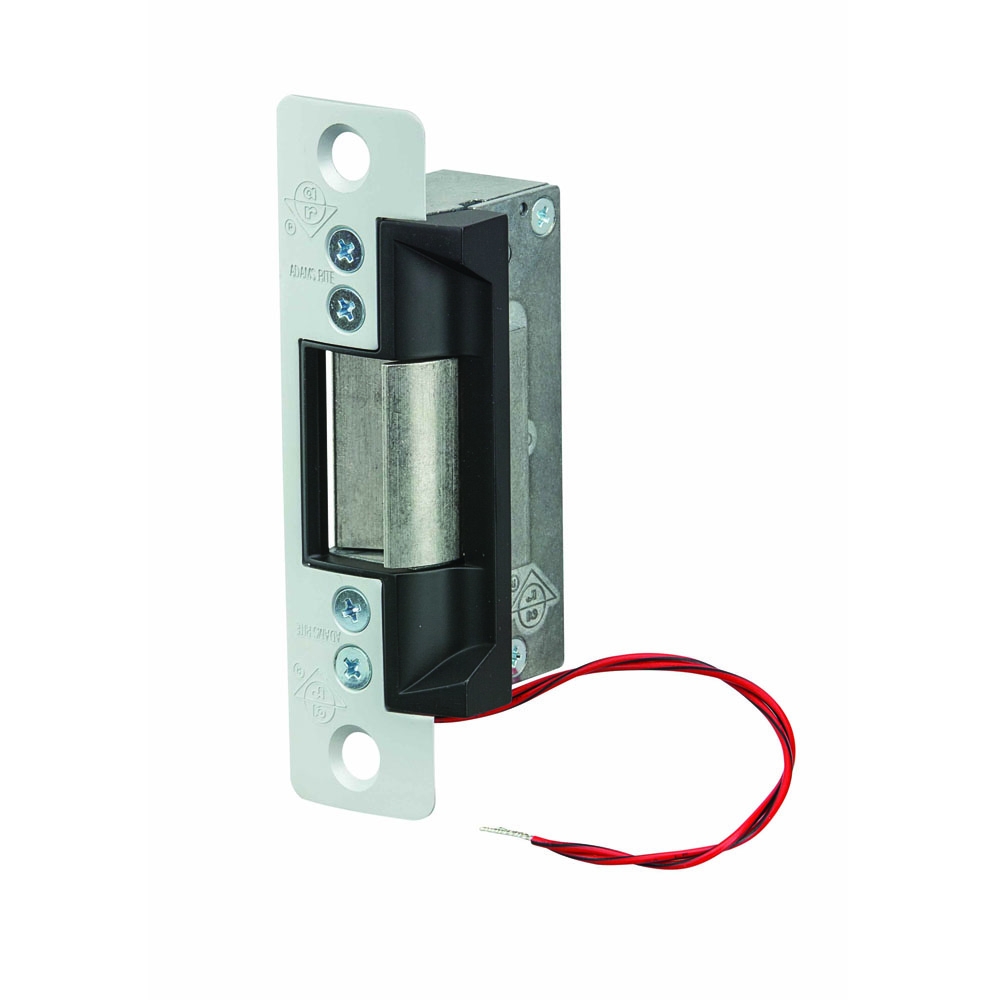

Adams Rite 7101-310-628-00 Electric Strike
Remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8"[15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.
Certifications:
- UL 1034 burglary-resistant listed
- UL 294 (6th Edition) listed
Case: 1" x 3-3/8" x 1-5/8" deep [25.4 mm x 85.7 mm x 41.3 mm deep].
Strike Opening: 5/8" x 1-7/16" x 1/2" deep [15.9 mm x 36.5 mm x 12.7 mm deep]. Bolt retaining keeper is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
Strike Lip: Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number.
- Lip extension kits not available on 7101 or 7131.
Latchbolt Projection: 1/2" to 5/8" [12.7 mm to 15.9 mm]
Faceplate: Available in a variety of architectural finishes.
- 7100 1-1/4" x 4-7/8"[31.8 mm x123.8 mm] Flat with radius corners
- 7101 1-1/4" x 4-7/8"[31.8 mm x123.8 mm] Radiused to match noseon inactive leaf in a pairof narrow stile doors.
- 7110 1-7/16" x 7-15/16"[36.5 mm x201.6 mm] Flat with radius corners
- 7111 1-7/16" x 10-1/4"[36.5 mm x260.4 mm] Flat with radius corners
- 7130 1-1/4" x 6-7/8"[31.8 mm x174.6 mm] Flat with radius corners
- 7131 1-1/4" x 6-7/8"[31.8 mm x174.6 mm] Radiused to match noseon inactive leaf in a pairof narrow stile doors.
- 7140 1-1/4" x 4-7/8"[31.8 mm x123.8 mm] Flat with square corners
- 7130/7131: Large 6-7/8" faceplate is designed to cover strike opening when converting from an MS® pivoted-bolt deadlock to deadlatch.
Shipping Weight: 2 lbs [0.91 kg].
Current Draw:
- 0.33A at 12 VDC, 1.42A at 12 VAC
- 0.22A at 16 VDC, 0.63A at 16 VAC
- 0.17A at 24 VDC, 0.74A at 24 VAC
Voltage: Available in 12, 16, or 24 Volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.
Fail Safe | Fail Secure: Field selectable at time of installation. However, AC intermittent solenoid must not be used continuously in either.
