Aiphone C-ML-A Audio Master Station

SKU # AK/C-ML-A

The C-ML/A is part of Aiphone

Specs

  • Power Consumption 85mA (6V DC) max.
  • Output 100mW
  • Type of communication Push-to-talk (simplex)
  • Door Release Contact N/O dry contact, 30V AC/DC 1A
  • Mounting Wall mount
  • Wire Type 2-cond., overall shield - use Aiphone #822202(22AWG) or #821802(18AWG)
  • Wire Distance Door Station to farthest Master Station: 245'(22AWG), 590'(18AWG)

Delivery: The Aiphone C-ML-A Audio Master Station is factory-ordered, please allow 3-7 business days' lead time.

US$117.60

Description:

Description:

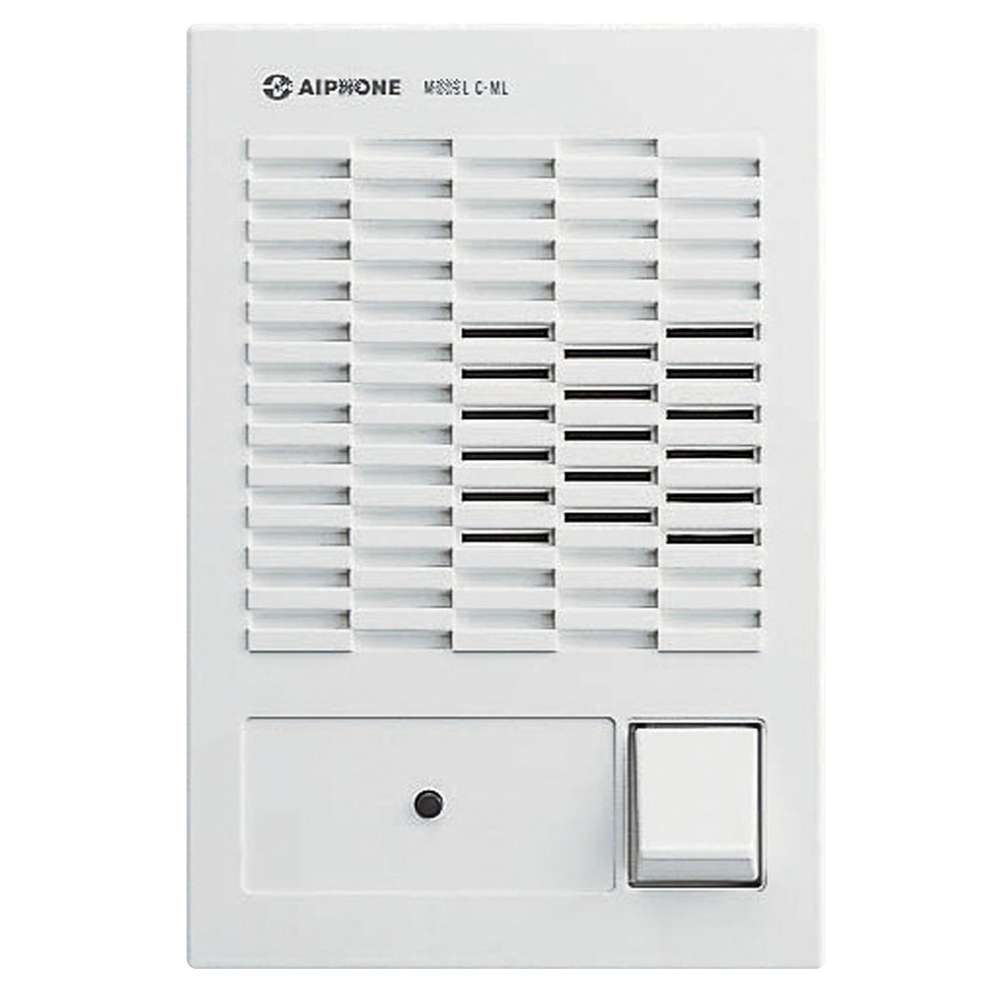

Aiphone C-ML-A Audio Master Station

The C-ML-A is a master station which is designed to be used with the C-123L/A which includes the DAK-2S. The C-ML-A master station comes with a chime/open voice tone door answering system, a 15 second timed call in/communication, a communication volume control, as well as a door relese. The C-ML-A master station is capable of communicating with a specific door and also activated door strike; it also comes with a lightweight design, and offers easy setup and installation for all operators.

Features and Benefits:

- Push-to-talk door answering with door release.
- Adjustable communication volume.
- Automatically turns off after 20 seconds.
- Battery or DC power supply.
- Optional door stations for replacement of C-D: any LE or LS Series.

Special Orders: For pricing on any Aiphone Devices not on this page please request a (Quick Quote) or call 1-800-221-3212.

Specifications:

Literature:

Product Videos:

Product Videos:
