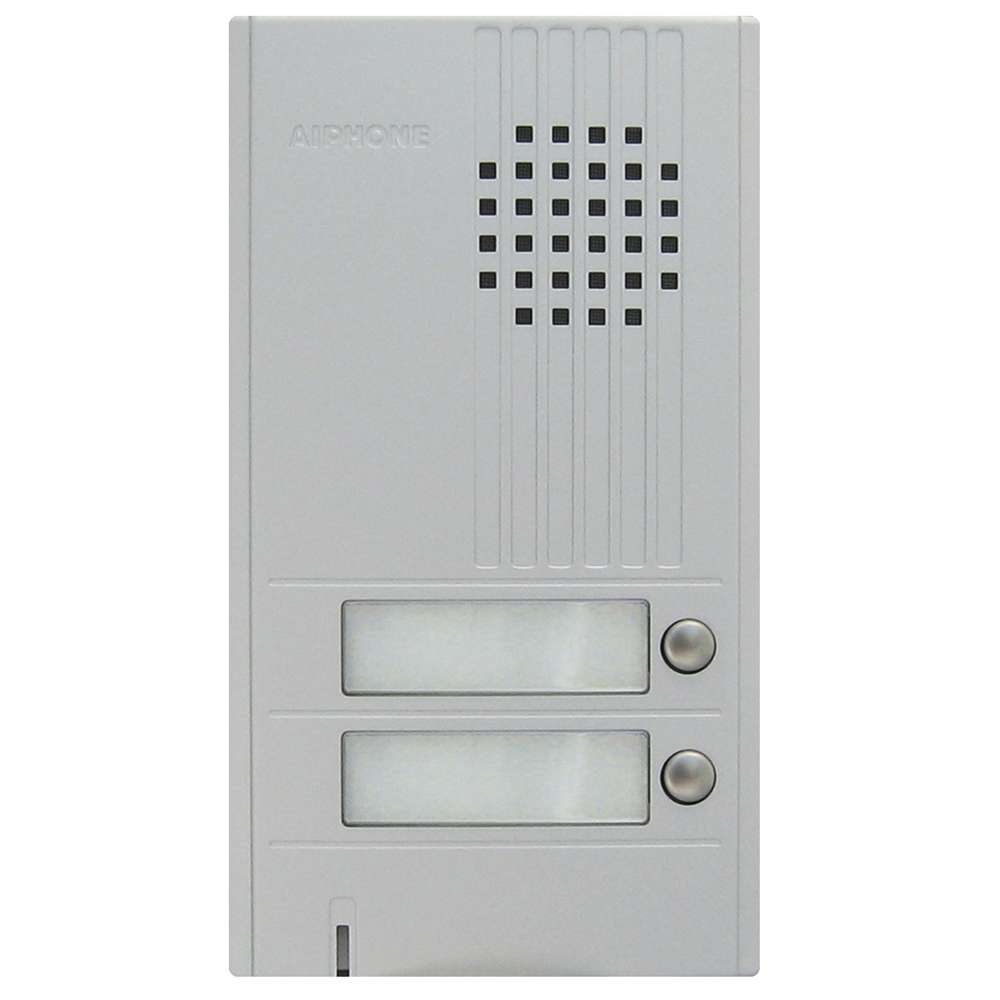

Aiphone DA-2DS 2-Call DA Series Door Station

SKU # AK/DA-2DS

The DA-2DS is part of Aiphone

Specs

  • Communication Hands-free
  • Door Release 9.5~20V AC, 70Ω or higher resistance - use EL-12S
  • Temp. Rating 14° ~ 140°F (-10° ~ 60°C)
  • Material Aluminum cover
  • Mounting Surface mount directly to wall
  • Wire Type Entrance Station to Tenant Station: 2-cond., overall shield - use Aiphone #822202 or 2-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871802
  • Distance Power Supply to Entrance Station (cumulative): 360'(22AWG) 1,020'(18AWG)

Delivery: The Aiphone DA-2DS 2-Call DA Series Door Station is factory-ordered, please allow 3-7 business days' lead time.

US$96.60

Description:

Description:

Aiphone DA-2DS 2-Call DA Series Door Station

The DA-2DS is a DS series, 2 call door station which features a silver colored finish for a more professional appearance. The DA-2DS door station comes with a call button, a compact size, illuminated directories, as well as a 12VDC output for optimal door strike connection. The DA-2DS door station also features a hands-free communication, and is capable of being effortlessly installed to help save money and time.

Features and Benefits:

- Direct select buttons.
- Backlit directory.
- Weather resistant.
- Door release powered by entrance station.

Special Orders: For pricing on any Aiphone Devices not on this page please request a (Quick Quote) or call 1-800-221-3212.
