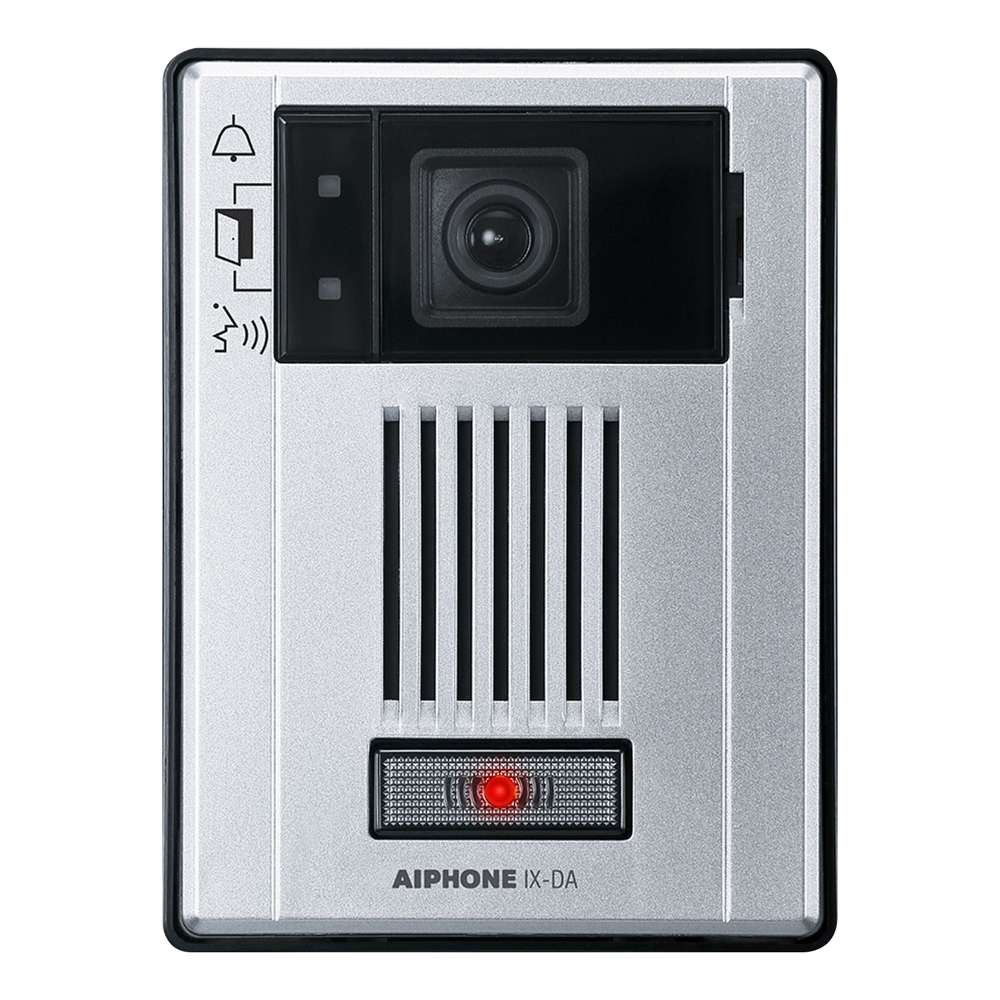

Aiphone IX-DA Surface Mt IP Video Door Station
The IX-DA is a surface mount IP addressable video door station. Weather resistant. Connect to the network using CAT-5e/6 cable. Door station has a built-in dry contact for door release (24V AC/DC, 500mA0. The IX-DA unit is equipped with a fixed camera with vertical angle adjustment. The IX-DA is ONVIR Profile S compliant.
The door stations can call up to 20 different master stations (IX-MV or instances of IX Mobile). An additional 20 master stations can be called using the contact input. The speaker and microphone allow for two-way communication with a master station or the IX Mobile App. The 600 ohm output can be used for paging announcements or to run audio to an external speaker/horn. The units are 802.3af PoE compliant.
Features and Benefits:
- 802.3af PoE, Class 0.
- White LED for low light illumination.
- Single contact output (door release, external signaling).
- Single trigger input.
- 600Ω audio output.
- IP55 rated, weather resistant, surface mount IP addressable audio only door station.
Special Orders: For pricing on any Aiphone Devices not on this page please request a (Quick Quote) or call 1-800-221-3212.
