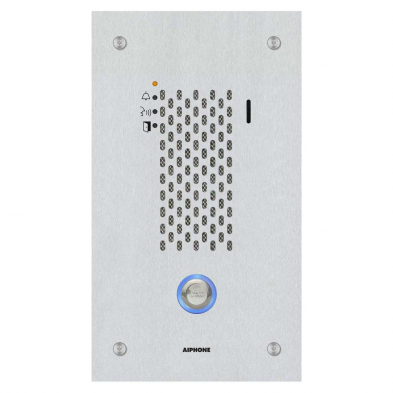

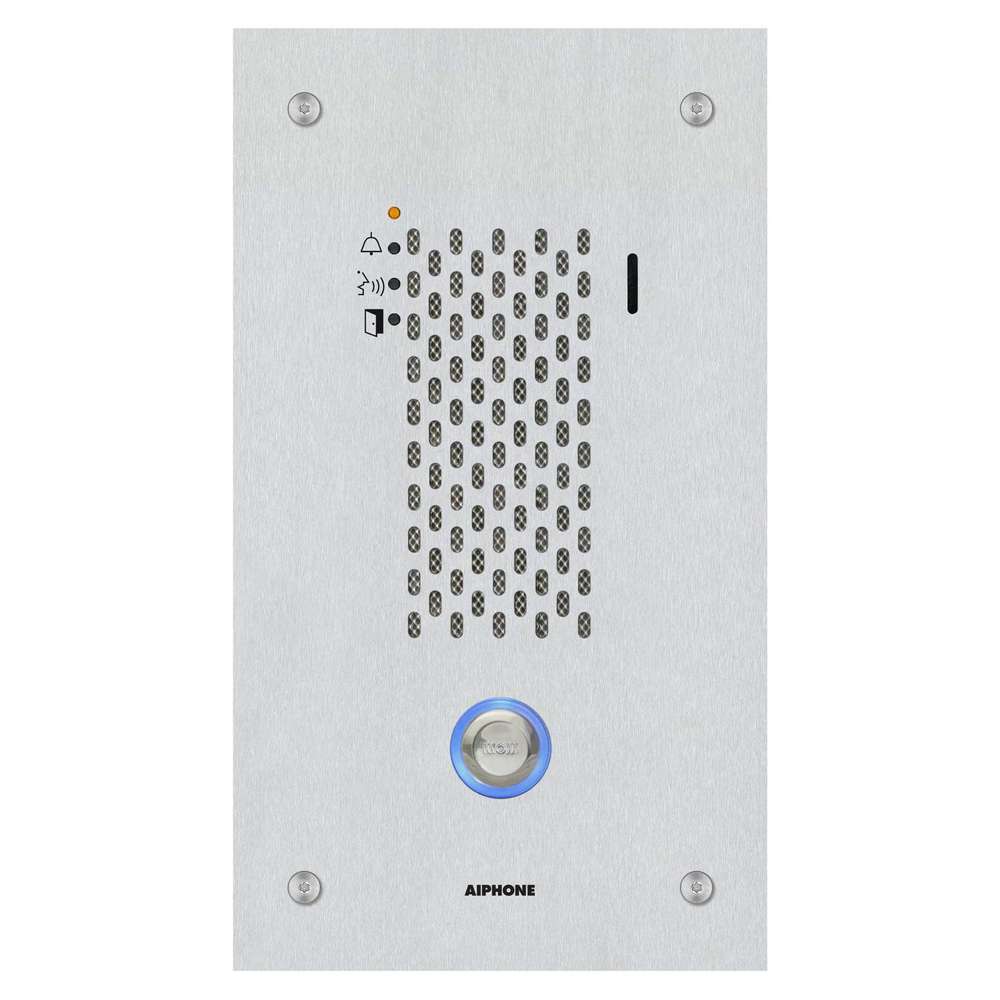

Aiphone IX-SSA SIP Flush Mount IP Door Station

SKU # AK/IX-SSA

The IX-SSA is part of Aiphone

Specs

  • Power Source PoE (IEEE 802.3af class 0) PoE pass through (802.3at Type 2 PoE+)
  • Power Draw 3.36 Watts
  • Audio Codec G.711 (μ-law, A law), G.722
  • Volume 73dB-96dB
  • Port Security IEEE 802.1X
  • Operating Temp -40° - 140°F (-40° - 60°C)
  • Ingress Protection IP65
  • Impact Protection IK08
  • Dimensions 10-7⁄16" H x 5-⅞" W
  • Mounting Flush mounted with included back box, or surface mount with the SBX-IDVF Stainless Steel surface mount box

Delivery: The Aiphone IX-SSA SIP Flush Mount IP Door Station is factory-ordered, please allow 3-7 business days' lead time.

US$891.80

Description:

Description:

Aiphone IX-SSA SIP Flush Mount IP Door Station

The IX-SSA SIP Complaint Flush Mount IP Door Station features entry security, internal communication, and emergency stations. Vandal resistant stainless steel cover.

Features and Benefits:

- SIP 2.0 compliant.
- 802.3af PoE with PoE pass through (802.3at Type 2 PoE+).
- Illuminated call button indicator.
- Slot for micro SD card (not provided by Aiphone).
- IP65 rated, weather resistant (IP65).
- 2 contact outputs.
- 6 trigger inputs.

Special Orders: For pricing on any Aiphone Devices not on this page please request a (Quick Quote) or call 1-800-221-3212.

Specifications:

Literature:

Product Videos:
