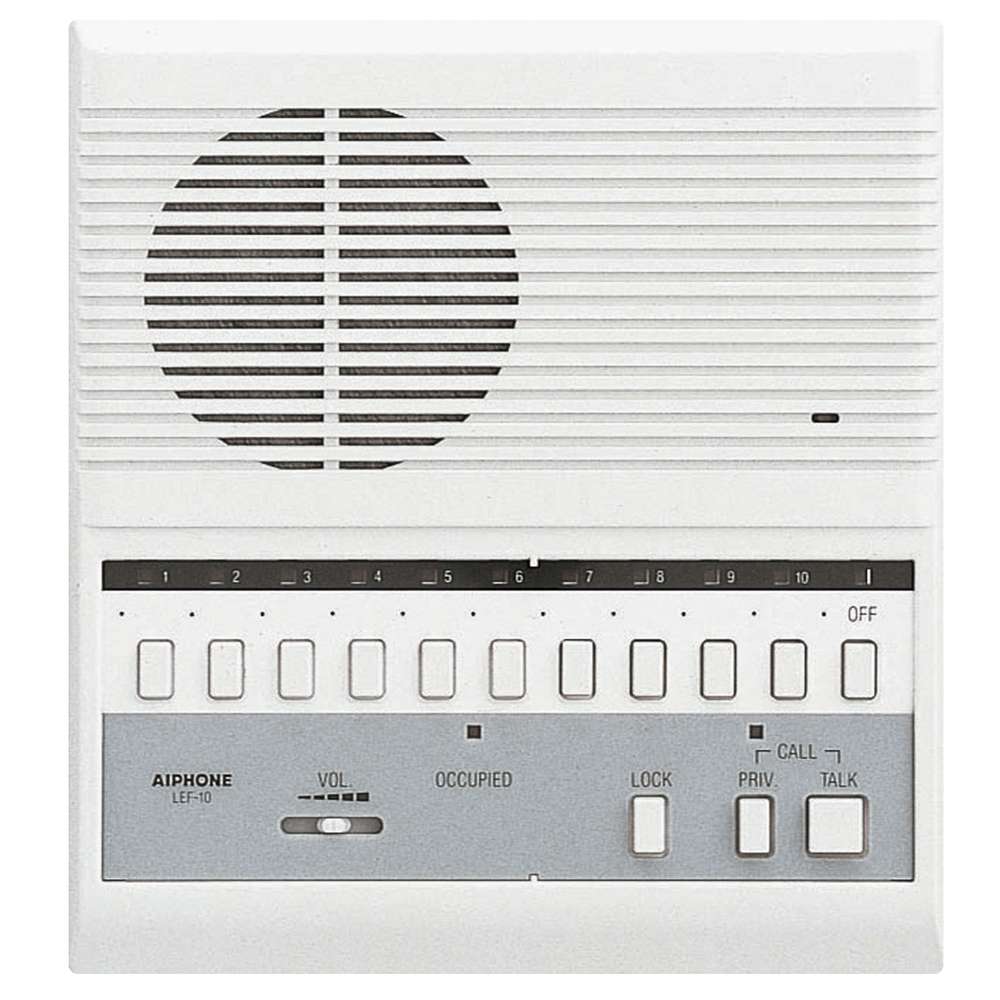

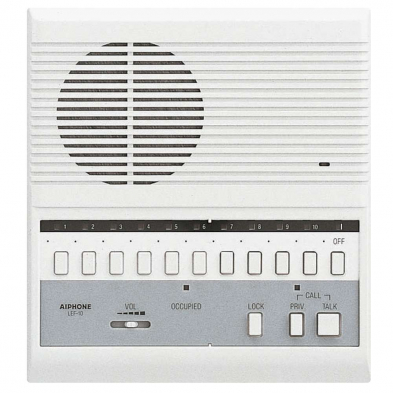

Aiphone LEF-10 10-Call Surface Mount Master

SKU # AK/LEF-10

The LEF-10 is part of Aiphone

Specs

  • Power Source 12V DC, 300mA per station. Use PS‑1208UL, or PS-1225UL for systems with BG-10C.
  • Output 800mW @ 20Ω (reception), 500mW @ 20Ω (transmission)
  • Talk Channel 1 talkpath. Occupied LED when in use.
  • Wiring 5 common wires (E, R, Y, +, -), plus 1 individual wire per station, looped.
  • Sub stations: 2 wires homerun in single master systems, or 2 common wires (E, -), plus 1 individual wire per station, looped or homerun.
  • Capacity Up to 11 stations, intermixable
  • Wiring Distance 650' w/22AWG; 1600' w/18AWG
  • Dimensions: 8-1/18" H x 7-1.2" W x 2-3/16" D

Delivery: The Aiphone LEF-10 10-Call Surface Mount Master is factory-ordered, please allow 3-7 business days' lead time.

US$347.20

Description:

Description:

Aiphone LEF-10 10-Call Surface Mount Master

The LEF-10 is a selective calling open voice style master station with the capacity of up to 11 total stations. The system can be designed to meet a wide variety of needs, including any combination of master and sub stations up to its maximum capacity.

Features and Benefits:

- Provides internal communication to LEF master stations or LE.
- ABS plastic housing.
- Selective door release.
- LED and call-tone indicators.

Special Orders: For pricing on any Aiphone Devices not on this page please request a (Quick Quote) or call 1-800-221-3212.

Specifications:

Literature:

Product Videos:
