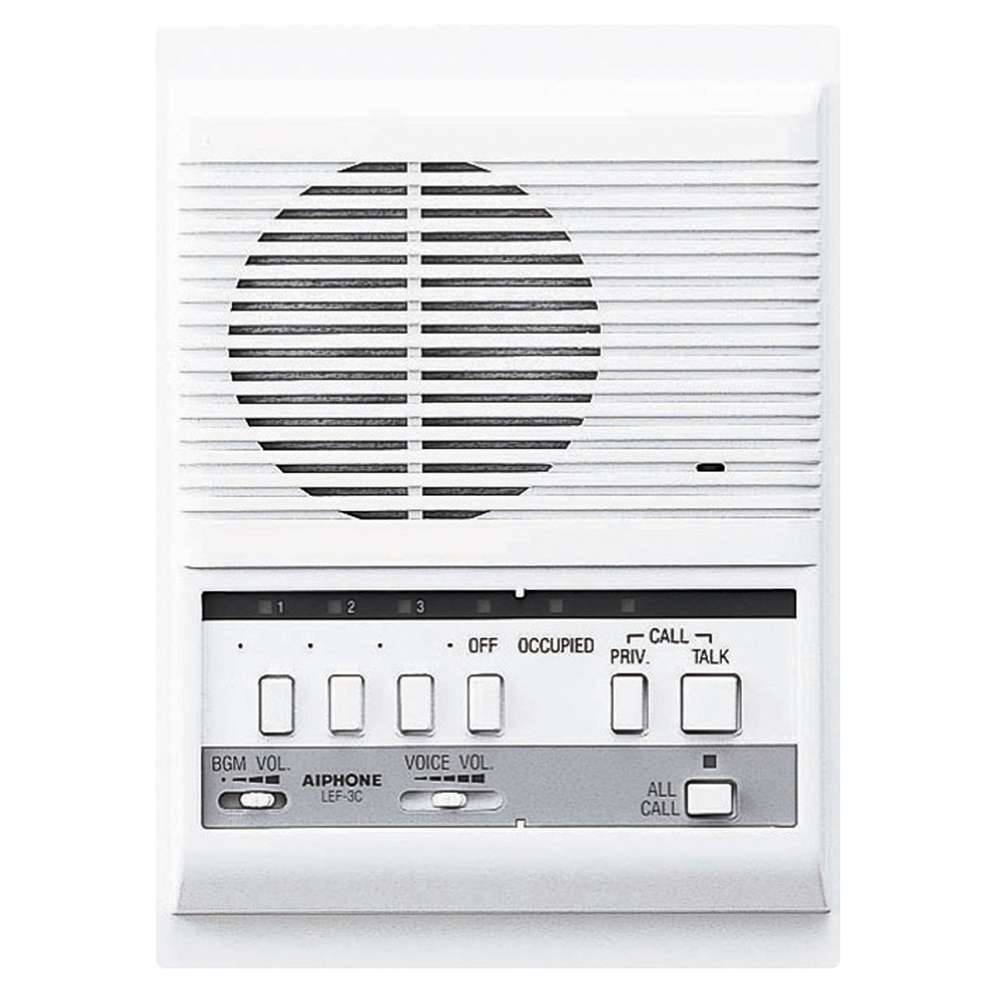

Aiphone LEF-3C 3-Call Semi-Flush Mt Master St

SKU # AK/LEF-3C

The LEF-3C is part of Aiphone

Specs

  • Power Source 12V DC, 300mA per station. Use PS‑1208UL, or PS-1225UL for systems with BG-10C
  • Output 800mW @ 20Ω (reception) 500mW @ 20Ω (transmission)
  • Communication Press-to-talk, release-to-listen at master station. Hands-free at responding station
  • Talk Channel 1 talkpath. Occupied LED when in use.
  • Wiring 5 common wires (E, R, Y, +, -), plus 1 individual wire per station, looped.
  • All Call: add 3 common wires (P1~P3)
  • Sub stations: 2 wires homerun in single master systems, or 2 common wires (E, -), plus 1 individual wire per station, looped or homerun.
  • Capacity Up to 4 stations, intermixable
  • Wiring Distance 650' w/22AWG; 1600' w/18AWG
  • Operation Temp 32°~104°F (0°~40°C)
  • Dimensions 8-1/4" H x 6-1/8" W x 1-3/8" D

Delivery: The Aiphone LEF-3C 3-Call Semi-Flush Mt Master St is factory-ordered, please allow 3-7 business days' lead time.

US$238.00

Description:

Description:

Aiphone LEF-3C 3-Call Semi-Flush Mt Master St

The LEF-3C is a selective calling open voice style master station, used to answer calls from other remotes or masters. The system can be designed to include any combination of master and sub stations. The LEF-3C can be part of a larger system with the ability to communicate with three other stations, plus make an All Call and/or recieve background music. The LEF-3C flush mounts into a wall.

Features and Benefits:

- Provides internal communication to LEF master stations or LE door stations.
- ABS plastic housing.
- Selective Call and Optional All Call.
- LED and call-tone indicators.

Special Orders: For pricing on any Aiphone Devices not on this page please request a (Quick Quote) or call 1-800-221-3212.
