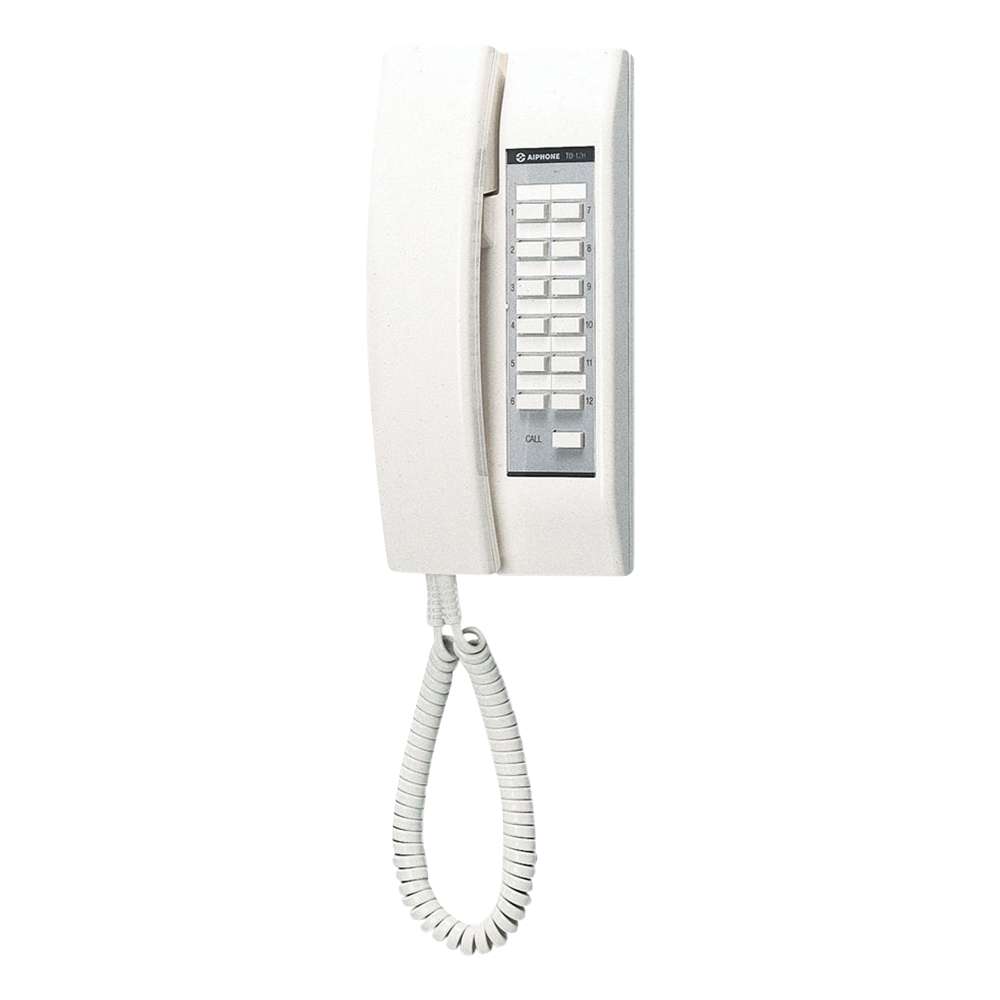

Aiphone TD-12H-B 12-Call Audio Master Station
The TD-12H-B is a 12-Call Handset Master Station which is specially designed to be used within compatible intercome systems. The TD-12H-B handset master is capable of selecting a specific channel or call line to connect easily to the receving individual; it also features support of up to 13 stations, and is compact in size which enables for easy setup and installation.
Specs
- Power Consumption 70mA per station
- Type of communication Handset (full-duplex)
- Door Release Contact N/O dry contact, 30V AC/DC, 1A (at DE-UR)
- Mounting Desk mount or surface mount directly to wall or 1-gang box
- Wire Type 16-cond., overall shield - use Aiphone #812216
- Wire Distance Between TD Master Stations: 2,200'(22AWG) 4,800'(18AWG)
