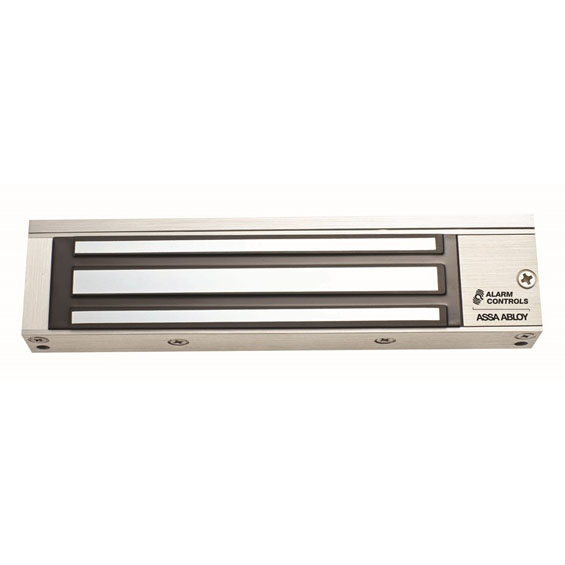

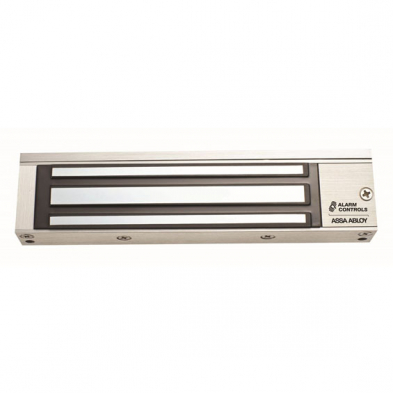

Alarm Controls 320S 300 Lbs. Single Door Magnetic Lock

SKU # AL/320S

Product Features:

  • Built-in arc suppression
  • Instant release, no hysteresis
  • Self-drilling TEC screws
  • Non-aluminum parts are plated to resist corrosion
  • E-Z mount header bracket and template provided for easy installation, no special tools required
  • Can be used with any access control system
  • Ideal for cabinets and showcases
  • Clear anodized (US28) finish standard
  • Limited lifetime warranty



Bracket mounted, single magnetic lock with 300 lbs holding force. This versatile maglock is easy to install, operates at 12 or 24 VDC and is ideal for cabinets and showcases.



Holding Force: 300 lbs


  • Magnet size: 6-11/16" L x 1-1/2" H x 1-3/16" W
  • Armature size: 5-1/2" L x 1-1/4" H x 7/16" W


  • Operates on 12 or 24 VDC, field selectable
  • Low current draw: 250 mA at 12 VDC,130 mA at 24 VDC

Operating Temperature: +14 to +131F [-10 to +55C]
