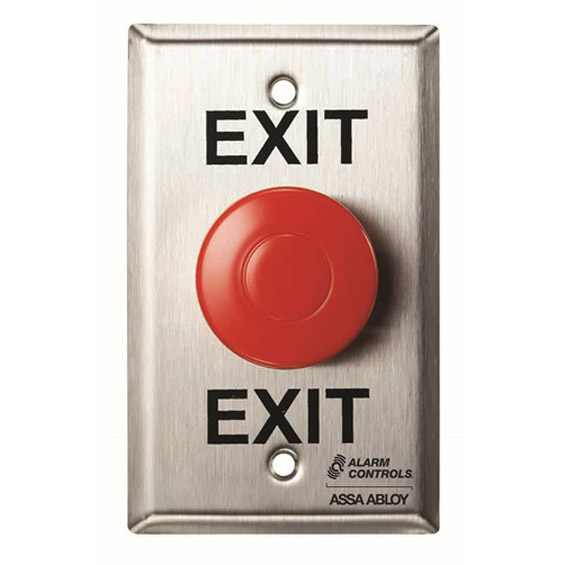

Alarm Controls EB-1 Large 1-1/2" Red Mushroom Button

SKU # AL/EB1

Product Features:

  • Single gang stainless steel wall plate
  • 1-1/2” red mushroom button
  • Plate screened “EXIT”
  • Momentary action switch

Options:

  • Plate: multiple finishes and widths available, specify when ordering
  • Illumination: long life LED in 6V, 12V, 24V, 120V, specify when ordering
  • GR Guard Ring
  • LUC Lift Up Cover
US$72.60

Description:

Description:

The Alarm Controls EB-1 is a single gang request to exit egress station with momentary push button switch that remains active as long as button is depressed. Choice of contact configurations ensures compatibility with most systems.

Specifications:

Specifications:

Certifications & Listings: UL and CSA certified components

Electrical:

  • Available in any combination of N/O and/or N/C contact pairs. See table below.
  • Contacts rated 10A at 35 VDC or 120 VAC
  • Switch connection via screw terminals
  • Switch depth behind plate: 2-1/2"

Operating Temperature: -13F to +158F
