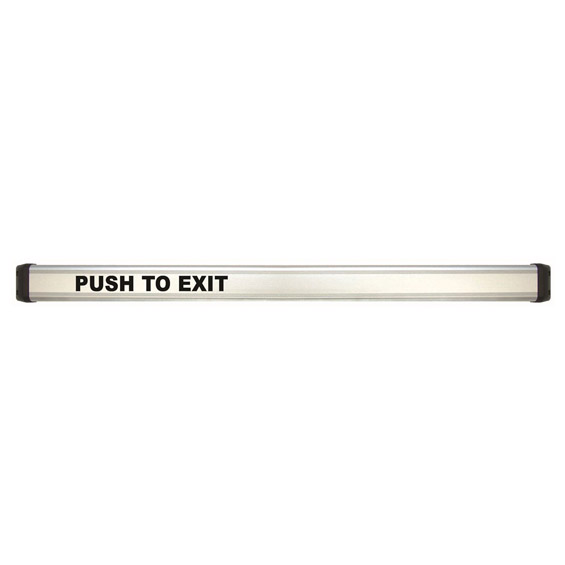

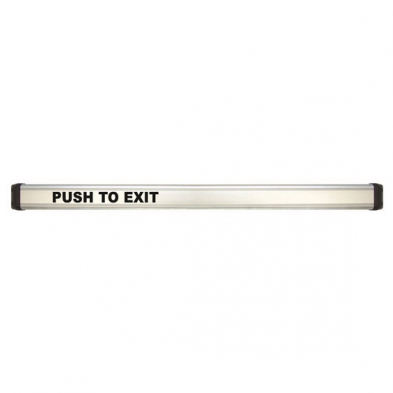

Alarm Controls REB-1A 36" Long Request to Exit Push Bar

SKU # AL/REB1A

Product Features:

  • Low profile design requires only 1/4" movement for activation
  • Mechanical action activates DPDT relay
  • 5A rated output to allow free egress or initiate an exit delay timer
  • Redundant switches ensure reliable, fault tolerant operation
  • All metal construction
  • Includes 16ft 22 AWG6 conductor cable and armored door cord
  • Indoor operation

Options:

  • Contact the factory for cover plates for retrofit applications. Covers unwanted holes, strengthen mounting area and provides clean aesthetic.
  • REB-1ADURO with Duranodic (US 40) finish
US$153.60

Description:

Description:

The Alarm Controls REB-1A provides mechanical activation for electronic release in a reliable, durable exit bar. Designed for use on electronically locked, non-fire-rated doors or as an initiate device for a delayed egress timer. Pressing the bar activates internal mechanical switches to release the lock.

Specifications:

Specifications:

Dimensions:

  • Length: 36"
  • Custom lengths available, please contact factory

Electrical: Max current 1.5A at 30 VDC

Operating Temp: -4° to +185° F (-20 to +85°C)
