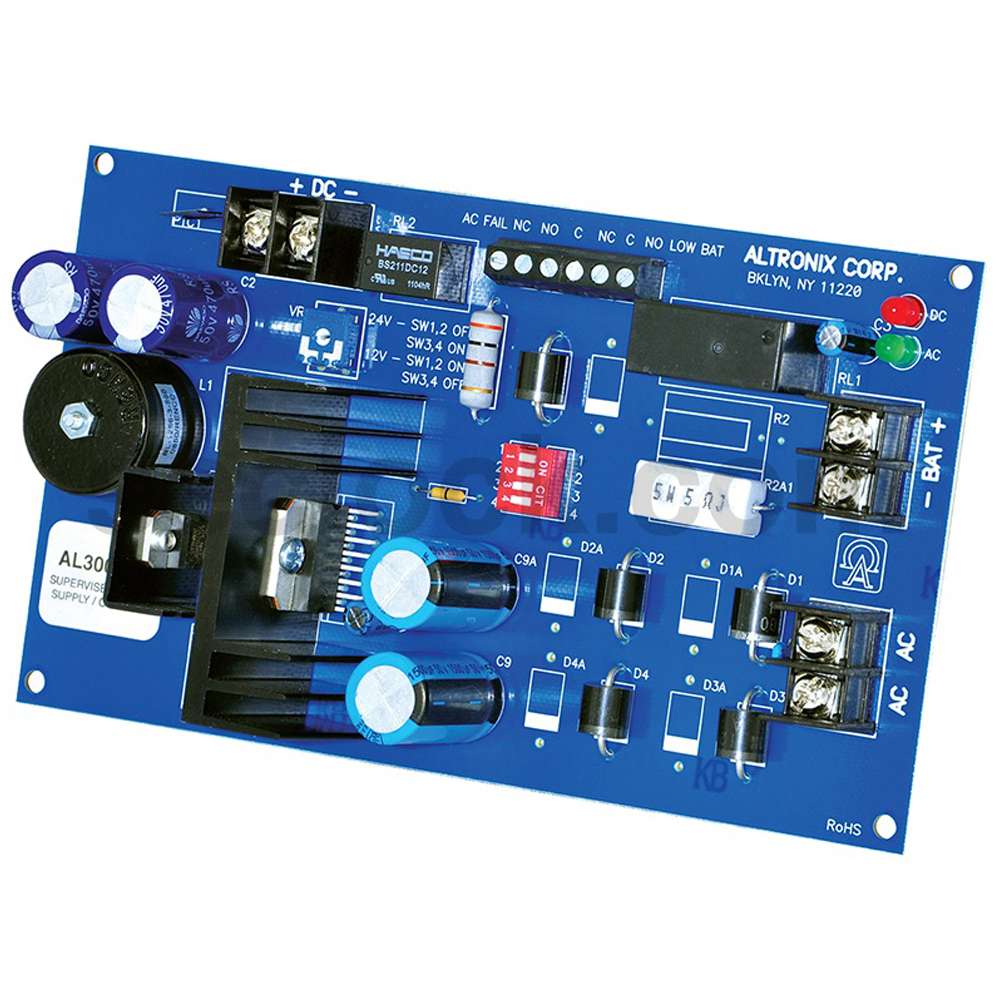

Altronix AL300ULB Power Supply Charger Board

Altronix AL300ULB Power Supply Charger Board

Altronix AL300ULB Series is a power supply/charger that converts a 28VAC input into a single 12VDC or 24VDC output.

The power supply is equipped with short circuit and thermal overload protection for optimal performance. The built-in battery charger works with sealed lead acid and gel type batteries. Following an AC power failure, the power supply automatically switches to backup battery power.

The unit has onboard LEDs that indicate AC input and DC output power status.

Features and Benefits:

- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- AC input and DC output LED indicators.
