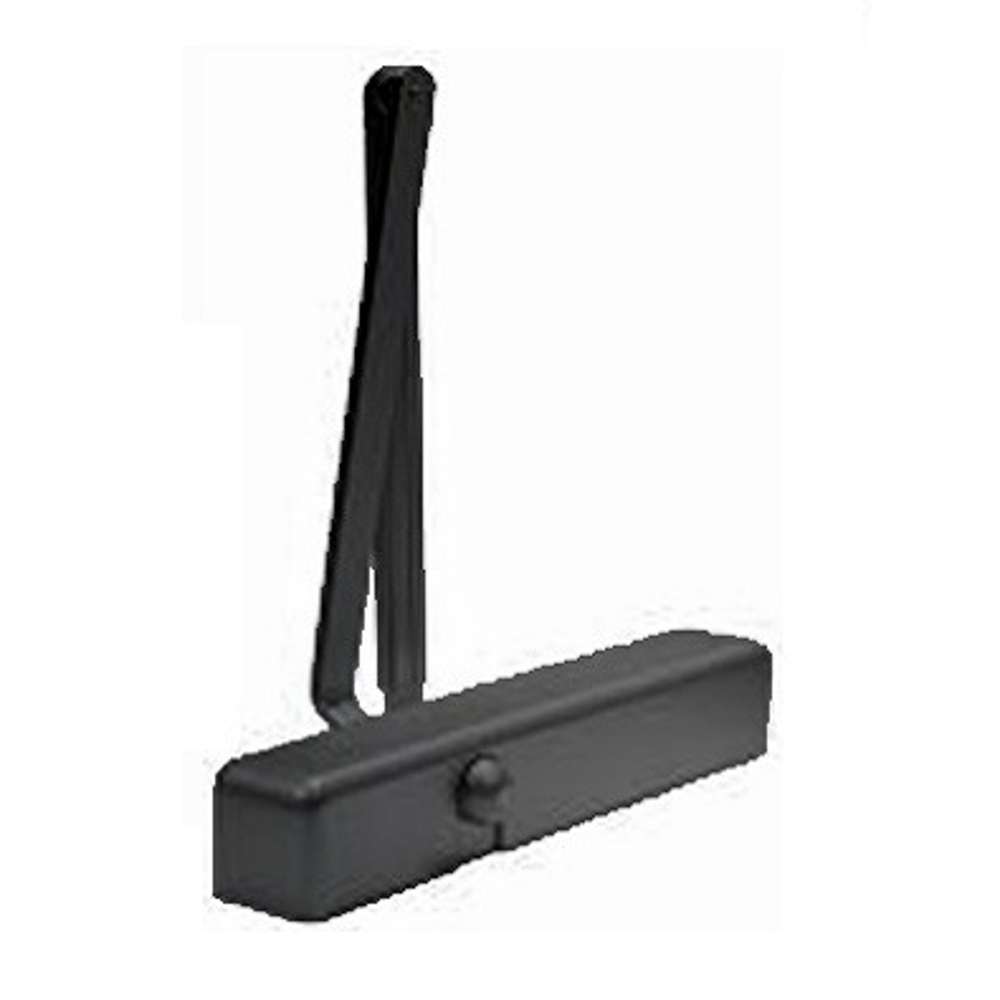

Dorma 8916-AF89P-FC-SNB1-695 Surface Door Closer
Representing the latest in door control technology, designed to exceed the demands of today's buildings.
The Dorma 8616 architectural grade, heavy duty surface closer is constructed as a highly flexible door control system for use on hollow metal, aluminum and wood doors.
The 8600 door closer series is a non-handed surface applied door closer with adjustable spring power and backcheck positioning adjustment. It provides the flexiblity needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.
Modern Aesthetics
The modern slim cover, flat form arm, and architectural finishes provide the aesthetic qualities required of architectural grade closers.
Applications
The 8600 Series is designed to provide a highly flexible door control system suitable for use on all hollow metal, aluminum, and wood doors typically used in commercial construction.
Controlled Opening with Backcheck Feature
The 8600 Series door closer features a backcheck positioning adjustment for parallel arm applications, to maintain an ANSI backcheck range similar to regular and top jamb applications.
Barrier-Free
This door closer series, with it's adjustable spring size 1-6, also meets barrier-free accessibility requirements.
Features and Benefits:
- Flat Form Non-Hold Open, Tri-Pack - Slim Cover.
- Long term performance.
- Adjustable Spring Size 1-6.
- Meets barrier-free requirements.
- Adjustable backcheck.
- Corrosion-resistant aluminum body.
- ANSI/BHMA A156.4 Grade 1 Certified.
- Available in Dark Bronze Painted (695) finish.
Mounting Options
Parallel Arm (Push Side), Regular (Pull Side), and Top Jamb (Push Side).
Sex Nuts
SN1 sex nuts and machine screws supplied standard for 1-3/4" thick door.
Special Orders: For pricing on any Dorma Door Closers not on this page please request a (
Quick Quote) or call
1-800-221-3212.
