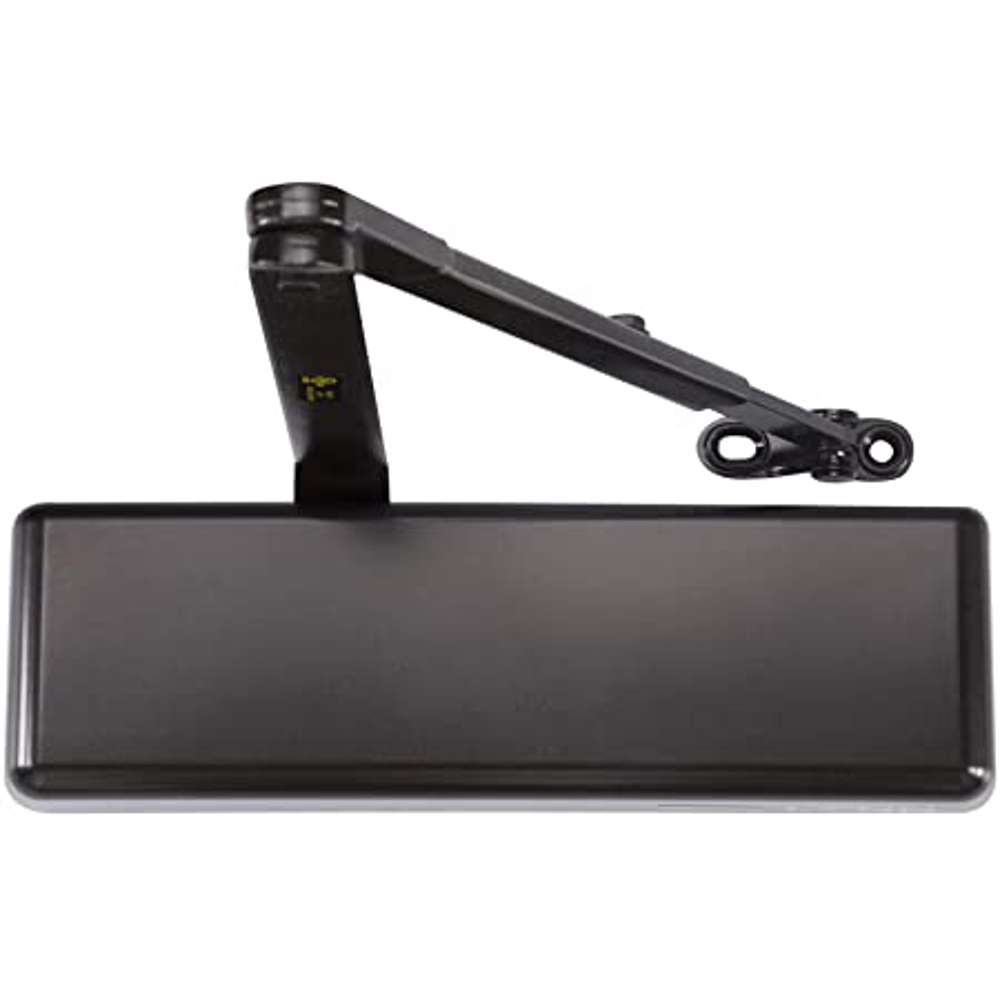

Dorma 8916-AF89P-FC-SN1-695 Heavy Duty Door Closer

SKU # DM/8916-AF89P-FC-SN1-695

The 8916 AF89P Tri-Packed Door Closer is part of Dorma

"Heavy-Duty Surface Applied Door Closer"

- Finish: Dark Bronze Painted (695).

Delivery: The Dorma 8916-AF89P-FC-SN1-695 Heavy Duty Door Closer is factory-ordered, please allow 2-3 business weeks' lead time.

US$379.20

Description:

Description:

Dorma 8916-AF89P-FC-SN1-695 Heavy Duty Door Closer

Versatile, durable, and reliable, featuring modern styling for institutional or high-traffic commercial applications.

The Dorma 8916 is designed to meet the demanding requirements in institutional or high traffic applications. Can be used on doors that weigh up to 180 pounds, measure up to 96" in height and up to 48" in width on interior doors and 42" in width on exterior doors.

The 8900 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications. Its hydraulic control system features a full range spring power adjustment and backcheck, along with a narrow projection full cover and flatform style arm.

Controlled Opening with Backcheck Feature
The 8900 Series hydraulic backcheck feature protects doors and their adjacent structures. It's valve adjustment regulates backcheck intensity. In addition, a backcheck positioning adjustment for parallel arm applications provides a consistent range similar to regular and top jamb applications.

Long Term Performance
The 8900 Series heavy-duty, 10 million cycle closers represent the latest in door control technology, combining over a quarter century of proven performance with its hydraulic control sytem and modern architecturally styled aesthetics. It results in the perfect combination of durability, reliability, and appearance.

Barrier-Free
The 8900 Series, with the fully adjustable spring, also meets barrier-free accessibility requirements.

Features and Benefits:

- Non-Hold Open, Tri-Pack - Full Cover.
- Long term performance.
- Adjustable Spring Size 1-6.
- Meets barrier-free requirements.
- Adjustable backcheck.
- Corrosion-resistant aluminum body.
- ANSI/BHMA A156.4 Grade 1 Certified.
- Available in Dark Bronze Painted (695) finish.

Mounting Options
Parallel Arm (Push Side), Regular (Pull Side), and Top Jamb (Push Side).

Sex Nuts
SN1 sex nuts and machine screws supplied standard for 1-3/4" thick door.

Special Orders: For pricing on any Dorma Door Closers not on this page please request a (Quick Quote) or call 1-800-221-3212.
