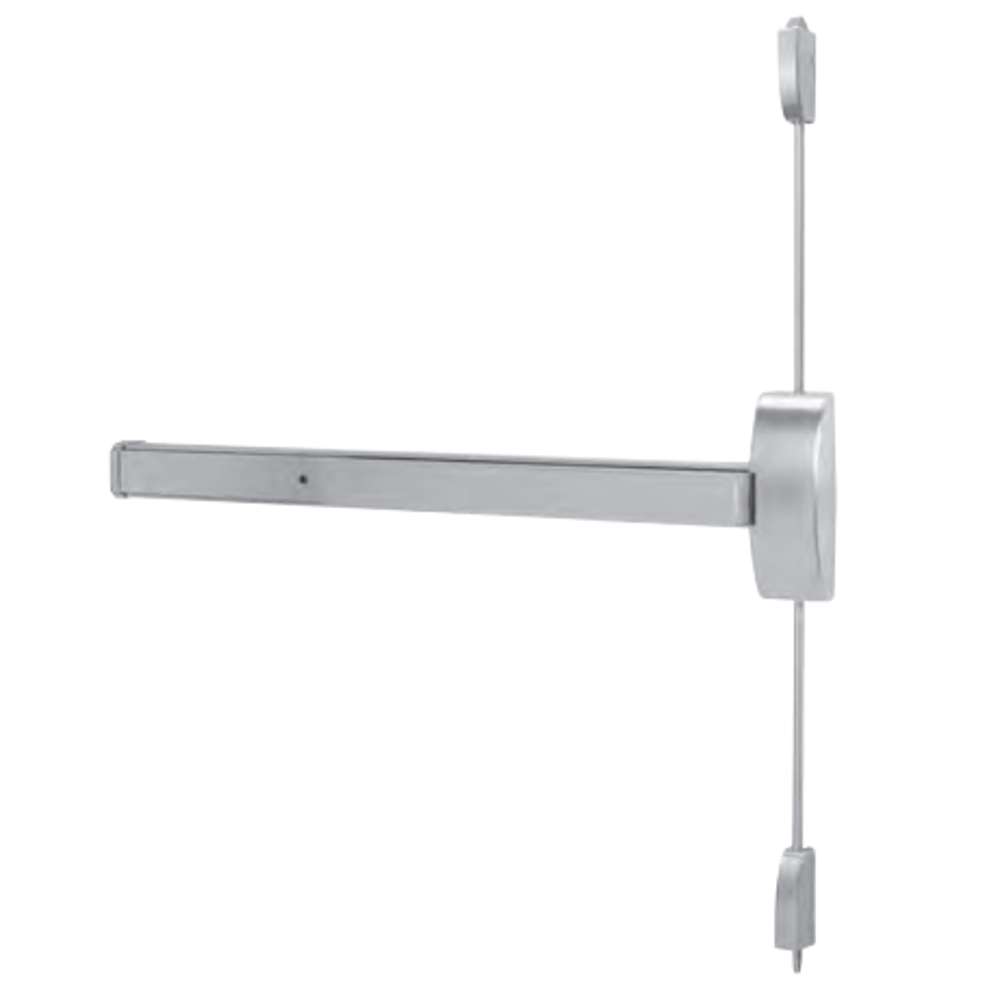

Dorma F9400-B-7"-LHR-630 FR Surface Vert. Rod Exit Device

Dorma F9400-B-7"-LHR-630 FR Surface Vert. Rod Exit Device

The Dorma 9400B-689 EO B 36" Surface Vertical Rod Exit Only device is available in wide stile for high impact applications such as schools, universities and other institutional or commercial buildings.

The 9400 and F9400 provide heavy-duty, secure two-point latching at the top and bottom of the opening. Both the 9400 and F9400 Series feature a patented latch design for reliable, secure operation. The F9400 devices are U.L.-listed for three-hour steel fire door applications.

The 9000 Series heavy-duty exit device provides superior durability while the smooth reduced projection touchbar assembly minimizes catch hazards. This premium exit device is for high impact applications such as schools, universities, and other insitutional or commercial buildings.

Wide Stile
The 9000 Series wide stile exit device features a heavy-duty cast chassis for superior durability, while the smooth reduced projection touchbar assembly minimizes catch hazards. The partial length touchpad permits field installation of options such as cylinder dogging and exit alarm. A full complement of free wheeling lever trim is available in a wide range of architectural finishes.

Features and Benefits:

- F9400 - 3 Hour Fire-Rated.
- UL and cUL listed.
- Heavy duty cast chassis.
- Touchbar, rail, chassis and cover assemblies constructed of heavy gauge solid wrought materials.
- Left Hand Reversible.
- For wood and steel doors.
- Exit Only - No Trim.
- Door Height up to 7'0" (Standard).
- 4-1/2" minimum stile.
- Standard 426/439 Strike.
- BHMA certified to ANSI A156.3 for Grade 1 exit devices.
- Available in Satin Stainless Steel (630) finish.

Bar Length
Standard: 36" bar fits 28" - 36" door.

Door Thickness
1-3/4" (44mm) standard.

Latchbolt
3/4" (19mm) throw, stainless steel pullman-type with stainless steel deadlocking latch.
