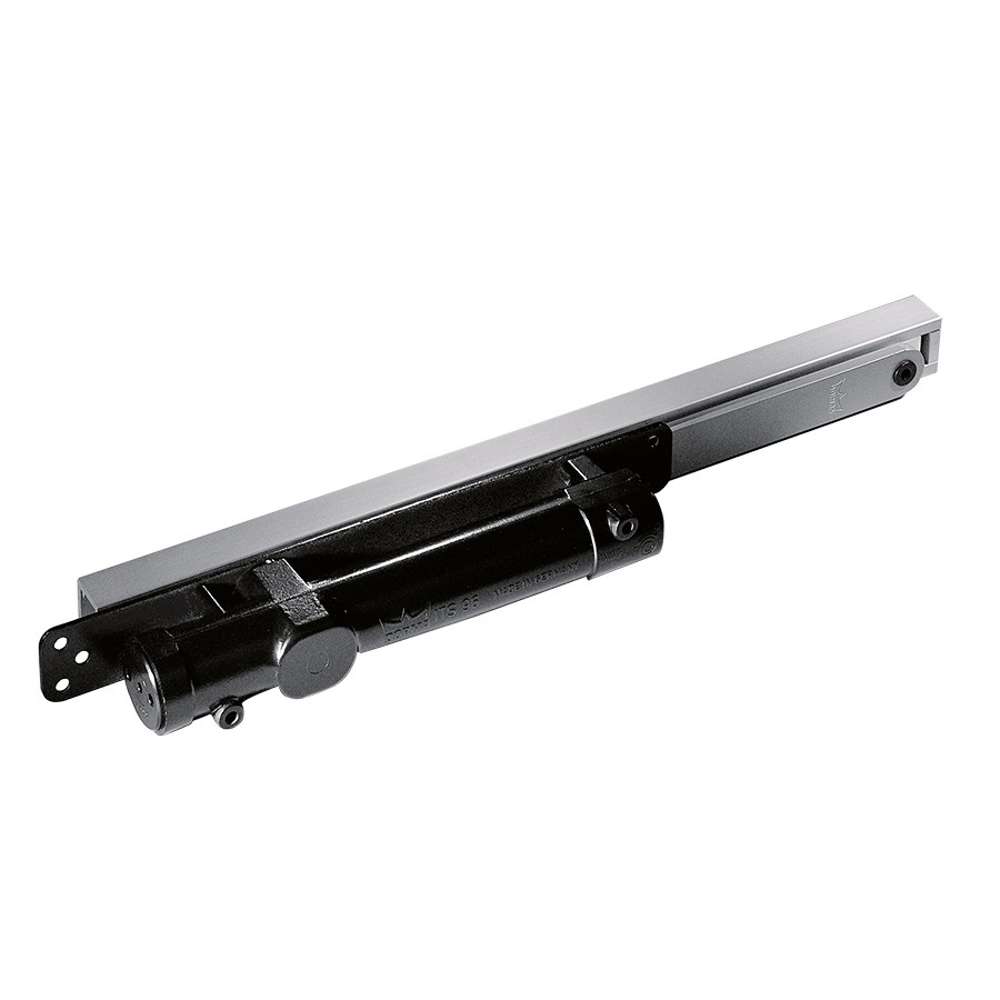

Dorma ITS9613-NHO-689 Concealed Cam Roller Door Closer
The optimum solution for applications requiring concealed door controls.
The Dorma ITS9613 is a standard duty closer. Its body gets mounted into the door and the track gets mounted into the frame. It is designed for interior aluminum, hollow metal or wooden doors that weigh up to 125 pounds and are a minimum of 1-3/4" thick. Spring size is adjustable from 1 to 3 to meet barrier free requirements.
The ITS96 series offers the optimum solution for applications requiring concealed door controls. It is suited for virtually any door and frame combination in a variety of leaf thicknesses and configurations.
Cam and Roller Technology
The ITS96 door closer's unique cam and roller technology meets the challenge of providing the operation and features necessary in a compact design.
Door Applications
The ITS96 Series is suitable for interior wood, hollow metal, and aluminum doors and frames. All ITS96 models can be inverted to install the closer body in the frame. Maximum door opening is approximately 130°.
Certification
The DORMA ITS9613 and ITS9625 are listed by UL and CUL under their continuing reinspection programs. Meets the requirements for UL10C for positive pressure. California State Fire Marshal (CSFM) approved. Meets the requirements of ANSI/BHMA A117.1 and ADA for barrier-free accessibility.
Features and Benefits:
- No Hold Open (NHO).
- Body gets mounted into door and track gets mounted into frame.
- Rapid decrease in opening force makes doors easy to open.
- Efficient cam and roller design.
- Non-handed.
- Adjustable spring force size 1-3.
- Available in Aluminum Painted (689) finish.
Door Width: 36" max.
Door Applications: Interior 1-3/4" Metal, Wood and Aluminum Doors.
Door Weight: Up to 125 lbs.
Door Opening: Maximum (approximately) 130°.
