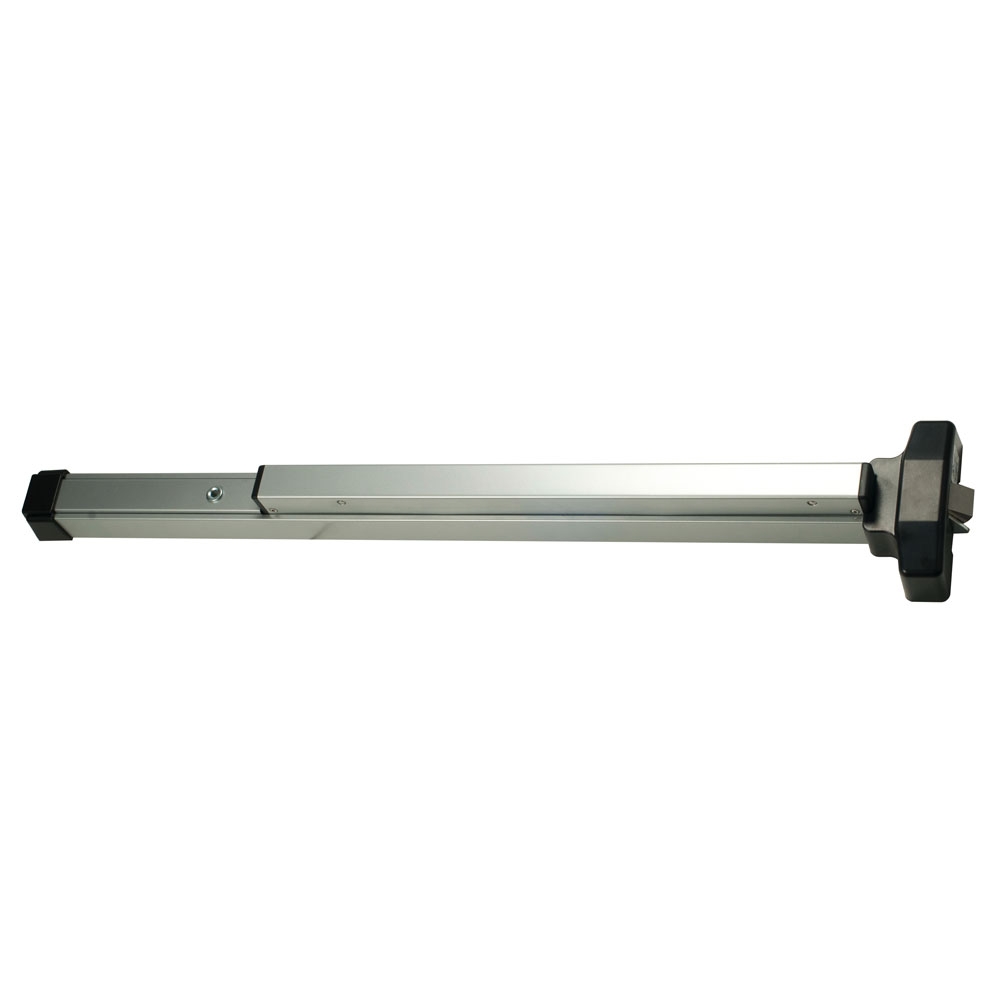

Falcon 19-R-EO-US32D-3FT 19 Series Exit Device
Device functions: EO - Exit Only
Specifications
- Hand: Non handed.
- Finishes: SP28, SP313, US32D. Centercase and end cap are powder-coated black only.
- Strike: F570 strike supplied standard.
- Sizes
- 3' for doors from 2'5" up to 3'
- 4' for doors from 3' up to 4'
- Latch: Stainless steel, 3/4" throw dead locking.
- Dogging feature: Hex key dogging standard.
- Doors: 1-3/4" thick metal or wood.
- Projections: 2-1/2" in neutral position, 1-7/8" in dogged position. Pushbar height is 1-3/4".
- Stile: 1-3/4" minimum.
- Fasteners: All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
- Endcaps: Black plastic end caps.
- ANSI: Certified ANSI A156.3 grade 1 standards.
