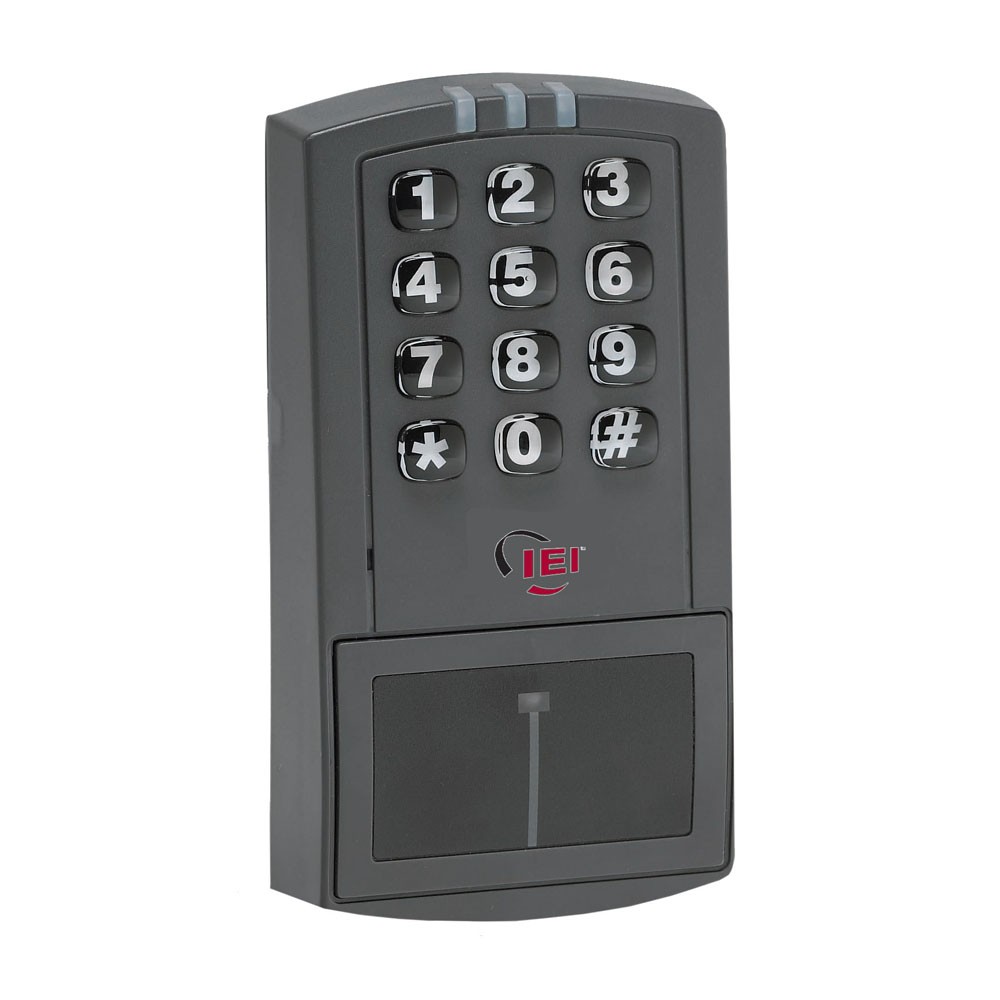

I.E.I. Stand Alone Proximity Reader & Keypad

SKU # IE/PROXPAD

  • Integrated door control, proximity reader and keypad
  • 2000 users
  • Bi-color LED to indicate operation
  • HID 26 – 37 bit format card compatibility
  • Fits over a single-gang electrical box
  • Corporate 1000 compatible
  • Glass-mount option included
  • Secured Series & Wiegand compatible
  • UL 294 Listed
US$378.24

Description:

Description:

IEI’s prox.pad is a stand alone proximity reader and keypad that can be directly mounted to a single-gang electrical box or to most flat surfaces. The prox.pad provides standard access control functionality with the use of its two relays and two inputs for request to exit and door position. By utilizing the proximity reader and keypad together, a higher level of security is achieved by requiring both to grant access. The prox.pad can be used for stand alone access control, or used as a reader for IEI access systems or most Wiegand systems. The proximity reader is capable of being mounted up to a maximum of 10 feet away from the prox.pad.

Specifications:

Specifications:

  • Dimensions: 2.75” x 5.25” x 1.38”
  • Operating voltage: 12 VDC only
  • Temperature tolerance: -20F to 130F
  • Main relay: Form C 4 amp SPDT
  • Auxiliary Relay: Form C 1 amp SPDT
