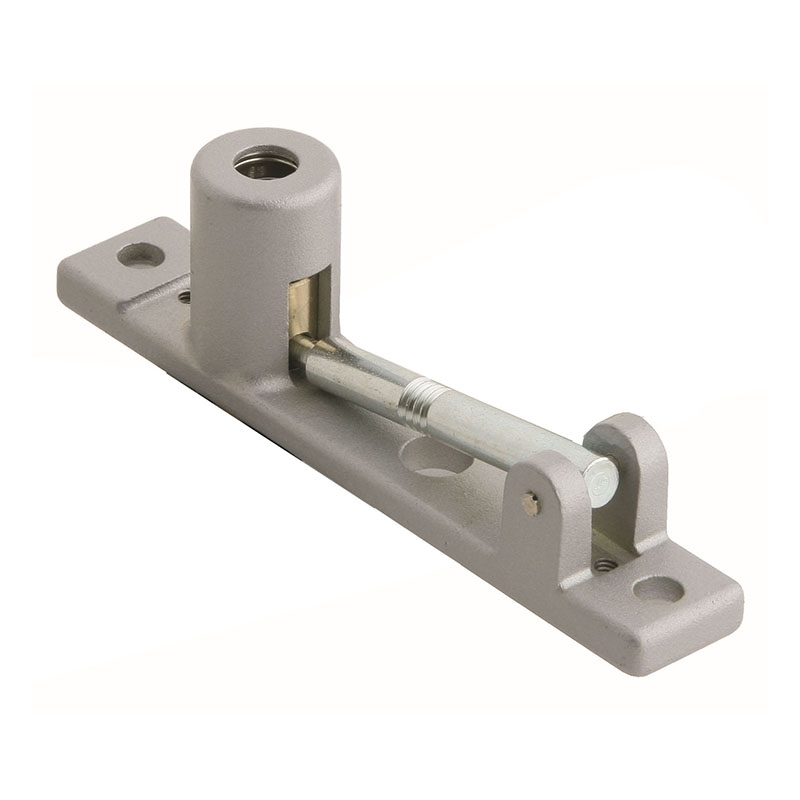

Ives-Glynn Johnson 7253-TOP-SP28 Top Pivot

The Ives-Glynn Johnson 7253-TOP-SP28 Top Pivot is a Top Pivot in Aluminum painted.

Features include:

Aluminum painted Finish
Center hung pivot
Maximum door load 300 pounds
Recommended for use with 1-3/4" minimum door thickness
Not recommended for doors larger than 4'0" X 8'0"
Easy installation, tilt on bearing and bearing pin
Adjustable floor to door clearance 3/16" to 3/4", consult product support if greater than 3/4"
Vertical adjustment range 3/16", with positive locking
7253 Top pivot only
Made from cast brass
Meets ANSI/BHMA A156.4 C07032
UL Listed, 20 minute fire doors

US$175.08
