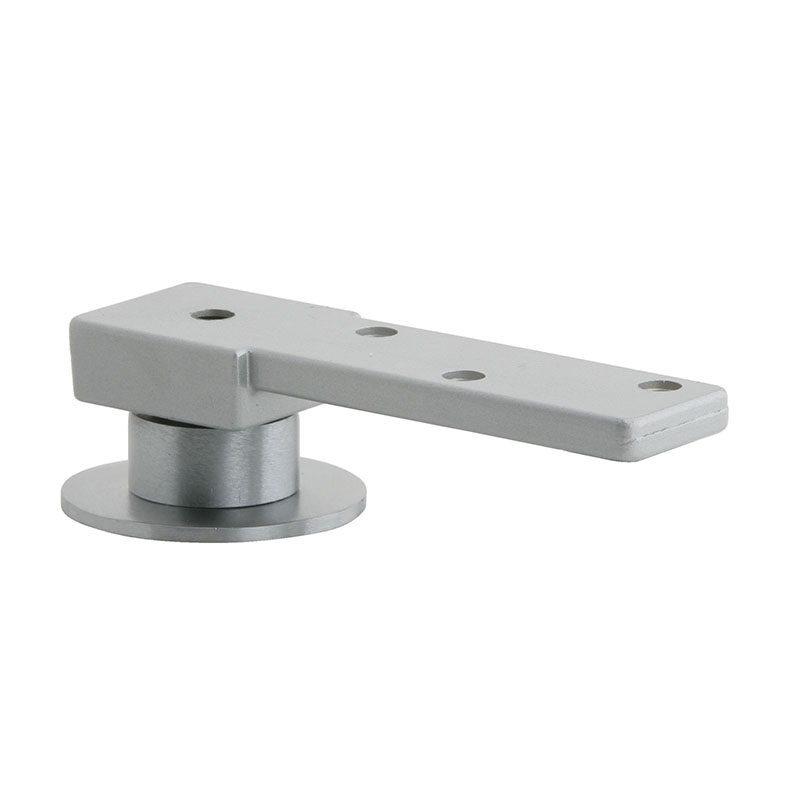

Ives-Glynn Johnson 7255-BTM-US26D Bottom Pivot

The Ives-Glynn Johnson 7255-BTM-US26D Bottom Pivot is a Bottom Pivot in Satin Chrome.

Features include:

• Satin Chrome Finish
• Center hung pivot, 500lb with bottom base mount
• Maximum door load 500 pounds
• Recommended for use with 1-3/4" minimum door thickness
• Not recommended for doors larger than 4'0" X 8'0"
• Easy installation, tilt on bearing and bearing pin
• Adjustable floor to door clearance 3/16" to 3/4", consult product support if greater than 3/4"
• Vertical adjustment range 3/16", with positive locking
• 7255 bottom pivot only
• Made from cast brass
• Meets ANSI/BHMA A156.4 C07032
• UL Listed, 20 minute fire doors
