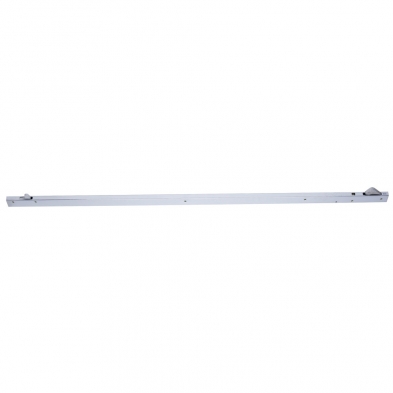

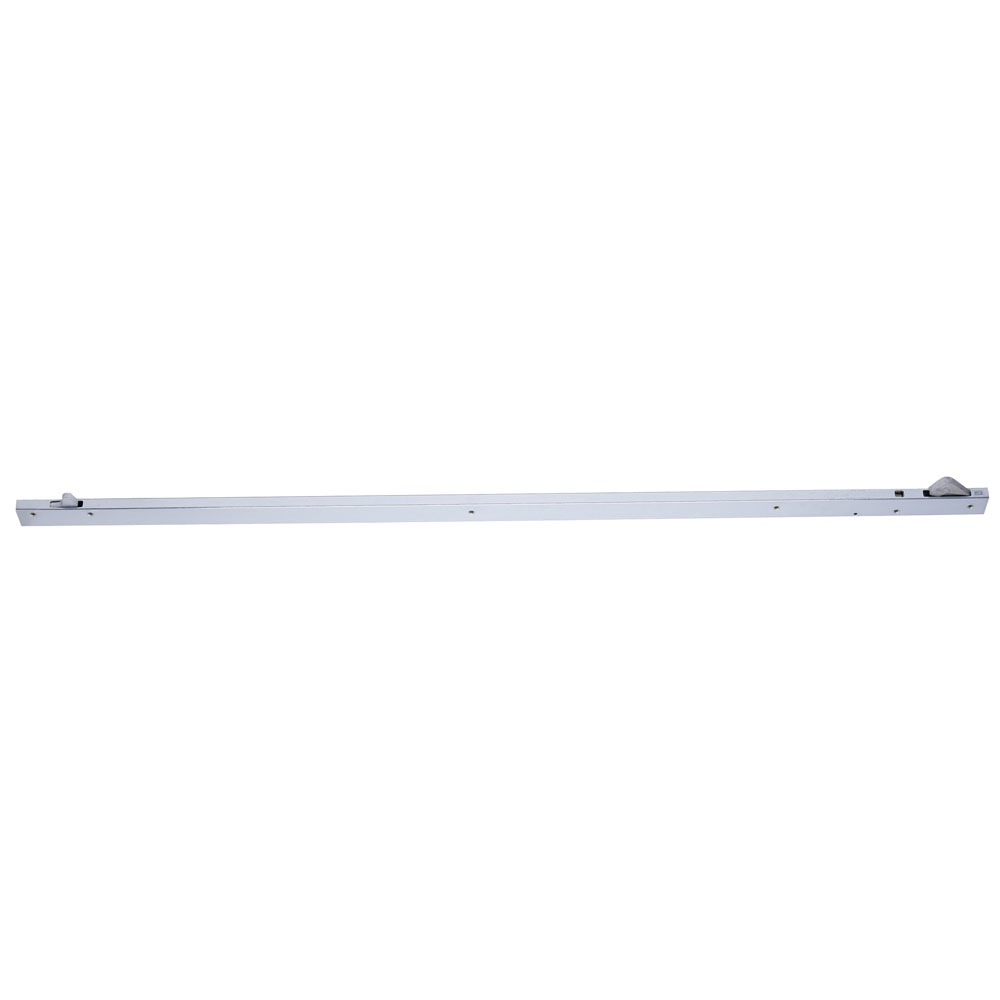

Ives-Glynn Johnson COR42-US28 Door Coordinator, 42"

SKU # IV/COR42-US28

The Ives-Glynn Johnson COR42-US28 Door Coordinator, 42"  Satin Aluminum is a Satin Aluminum 42 inch Door Bar Coordinator.                .

Features include:

  • Satin aluminum US28
  • Bar coodinators
  • Length of channel: 42"   For opening widths: 52" - 72"    Common applications: Pair of 2'6" Doors
  • The COR Series coordinators are designed for use on pairs of doors when one door needs to close before the other.
  • All COR units function easily. The active door lever, located nearest to the active stop, holds the active door open until the trigger mechanism is released by the closing of the inactive leaf.
  • All COR units do not function correctly with swingclear hinges. Consult factory when used with 3/4" offset pivots.
  • All COR units are equipped with an adjustable override feature which allows the active door to close under extreme pressure.
  • All COR units are compatible with flush bolts.
  • For openings where doors are unequal size - The coordinator length should equal the active door width plus approximately 1/2 the inactive door width. The coordinator must be 6" longer than the active door width and shorter than the overall frame opening between stops.
  • The COR Series does not cover the entire length of the stop, so a FL filler bar can be provided to maintain architecturally clean lines.
  • Meets ANSI A156.3 Type 21A
  • UL Listed for installation on labeled frame
  • Material Substrate - Aluminum 6000 Series
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$181.50
Comments or instructions

Description:

Description:

Ives-Glynn Johnson COR42-US28 Door Coordinator, 42"

Ives COR42 US28 42 Inch Door Coordinator is an essential component for ensuring the smooth operation of double-door systems in commercial settings. Constructed from durable aluminum, this 42-inch door coordinator boasts a matte silver finish (628/US28) that not only enhances its aesthetic appeal but also complements a variety of architectural styles. Designed specifically for commercial installation, the Ives COR42 helps to manage the sequence of door openings and closings, ensuring that one door opens before the other, thereby preventing damage and improving accessibility. This is particularly beneficial in high-traffic areas where efficiency and safety are paramount. The unit is sold individually, making it easy to order exactly what you need without excess. The Ives Door Control Hardware & Accessories series emphasizes reliability and quality, essential features for any commercial environment. Whether you're outfitting a new building or upgrading existing hardware, the Ives COR42 is a smart choice for maintaining functional and stylish door systems. Invest in this door coordinator today for a seamless and professional entryway experience.
