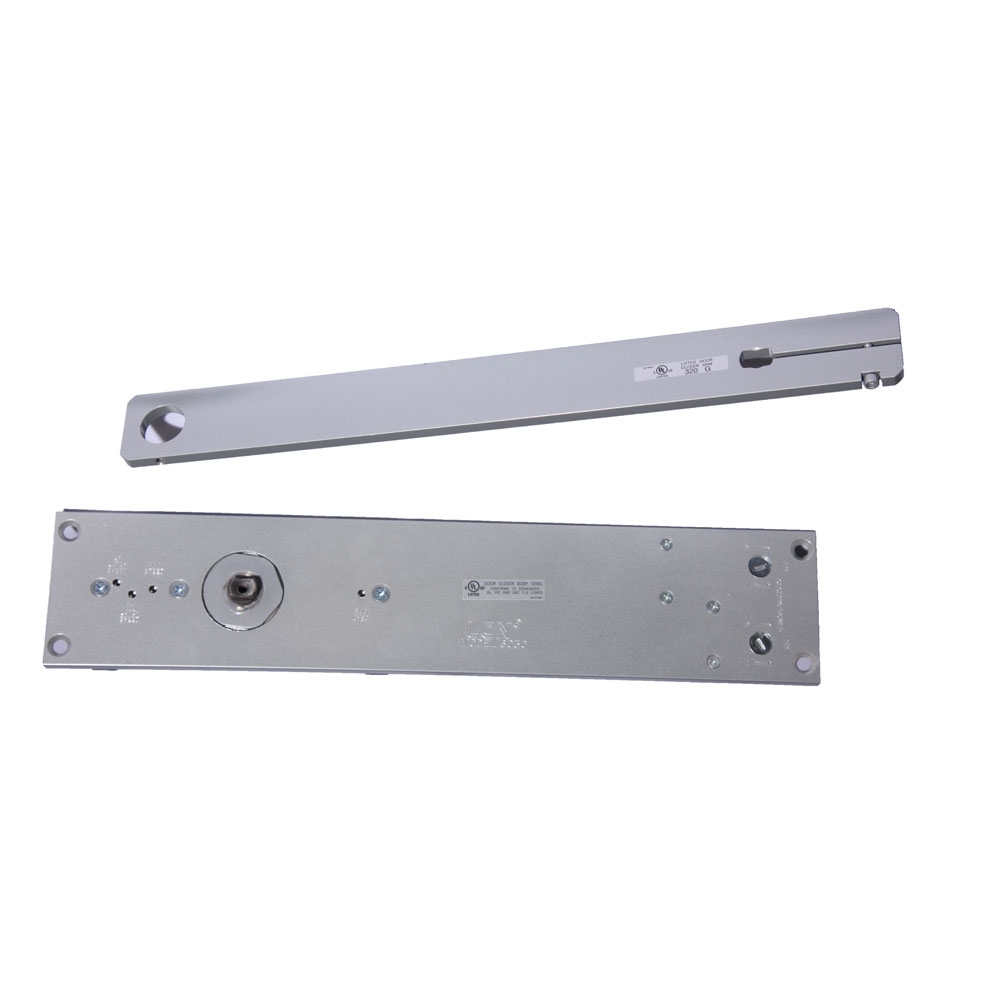

LCN 6033-BUMPER-AL Track Door Closer
6033 BUMPER Door Closer by LCN
The concealed LCN closers feature a modern design for concealment in either the head frame or top rail of the door.
The concealed LCN 6030 Series Pacer® is a heavy duty, double acting closer designed to fit in a narrow, minimum 1-3/4" aluminum transom. The single lever arm and roller assembly provides smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements. Installation at left illustrated with center pivot set (not included).
Features and Benefits:
- UL listed for self-closing doors, non hold-open.
- Tested and certified under ANSI Standard A156.4.
- Available in Aluminum (689) & Dark Bronze (695) finish.
The 6030 Series is UL and cUL listed for self-closing doors, non hold-open. Tested and certified under ANSI Standard A156.4, grade one.
Specification Data:
- Standard 6030 Series closer shipped with standard arm, standard track with bumper, mounting/finish plate and wood and machine screw pack.
- Sized, double acting cylinders for interior doors to 4' 6" and exterior doors to 3' 6".
- Aluminum frame requires minimum 1-3/4" (44mm) x 4" (102mm) header.
- Closers to meet ADA requirements.
- Adjustment of spring power and latch speed independent for either swing.
- Backcheck and general speed adjustment are common for both swings.
Door Width (Closer Size):
- 6031: Exterior Door Width - Size 1 (30"); Interior (30").
- 6032: Exterior Door Width - Size 2 (30"); Interior (30" - 34").
- 6033: Exterior Door Width - Size 3 (30" - 34"); Interior (34" - 38").
- 6034: Exterior Door Width - Size 4 (34" - 36"); Interior (38" - 48").
- 6035: Exterior Door Width - Size 5 (36" - 42"); Interior (48" - 54").
Track Function Option:
STD (Standard Track with BUMPER 6030-3038B): Standard, non hold-open, non-handed track with bumper. Will aceept hold-open clip.
H (Hold-Open Track with BUMPER 6030-3038HB): Optional, non-handed hold-open track with bumper.
Special Order Information: For pricing on any finish or non-standard option of the LCN 6030 Series Closers not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.
