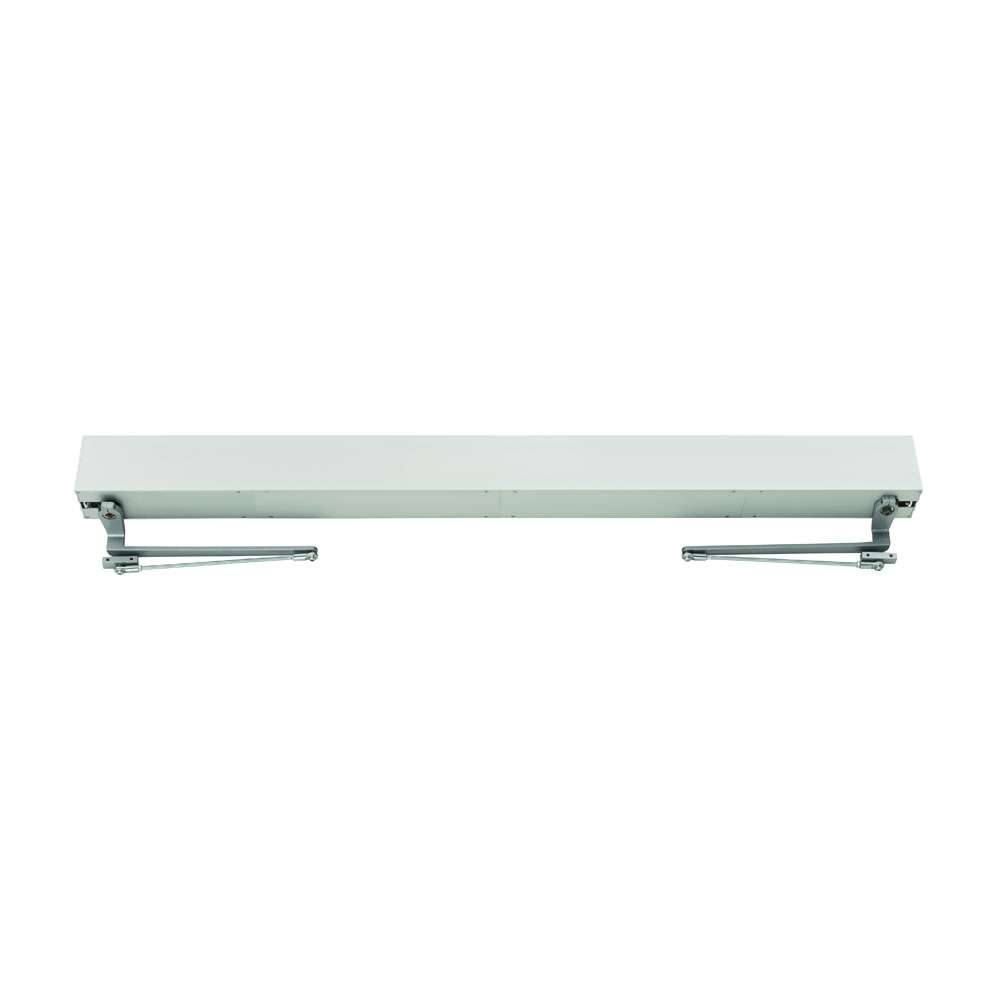

LCN 9553IQ-STDTRKARM2-628-COV2 Senior Swing Double Door Operator Standard Arm Assembly Track Roller Clear Aluminum Door 48-1/8in To 98in
AdaptivIQ
This built-in technology allows our operator to automatically adjust to external pressures and resistance during both opening and closing cycles. Through a combination of dynamic braking, responsive motor control, and Smart Power Boost technology, our operator compensates for wind, carpet drag, and HVAC stack pressure, allowing the door to latch securely and minimize the risk of slamming.
Fully-Loaded Controller
With 23 total programmable settings all accessible through a user-friendly LCD screen, a self-calibration cycle that establishes default settings based on the physical aspects of the door and the opening area, and real-time error code and diagnostic information, this loaded control box provides users with complete control of our automatic operator.
Single-Person Mechanical Installation
Our motor gearbox and controller are each mounted using a hook-and-cleat design, allowing them to simply hook onto the backplate to provide a hand-free holding option while each component is secured.
Smart Power Boost
A rare combination of brains and brawn, our Smart Power Boost can both add and control additional force on the closing cycle, only applying the force necessary to secure the door. It can both engage and disengage based on each individual closing cycle, minimizing the risk of slamming in low pressure scenarios, while still reliably latching in high pressure ones.
Specification:
- ADA compliant, ANSI/BHMA 156.19 certified, UL 325, 228, 10C, CA listed, Buy America Act compliant
- Capability to operate and control doors of up to 600lbs
- Surface and concealed mounting options
- Single-door or double door applications available
- On-board power supply (24VDC output) to power actuators, card readers, and safety circuits
9550IQ: Surface mounted double-door simulataneous operator available for push, pull or double-egress.
- Two standard track arms
- Two regular arms
- Two long arms
- Two telescoping arms
- Two telescoping long arms
- One standard track arm, one regular arm
- One standard track arm, one telescoping arm
