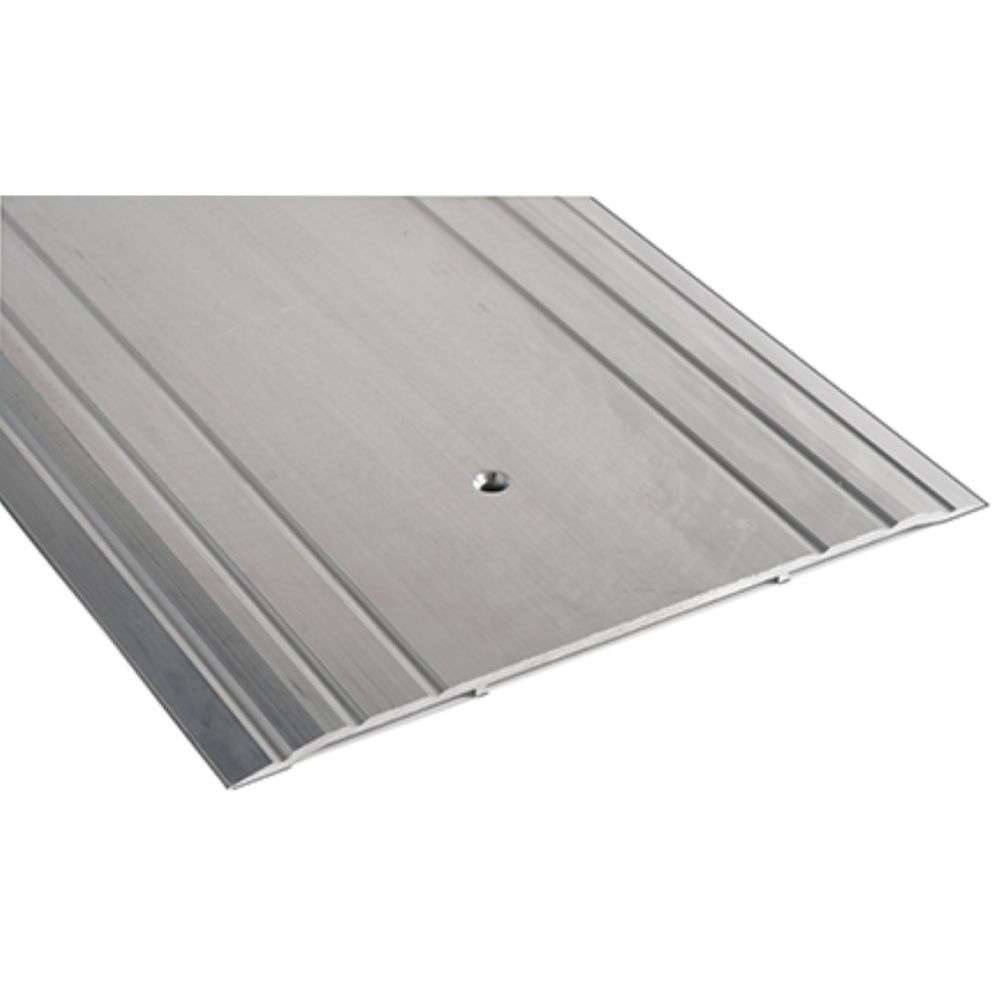

NGP 1013-36 Mill Alum Saddle Threshold 1/4x10x36
Features of the NGP 1013 Saddle Threshold:
Base Material: Aluminum Alloy 6063, T5 Temper
Width: 10"
Profile Height: 1/4" tall
Top: Fluted Top
BHMA Certified: ANSI/BHMA A156.21 1,000 Lb. Load Test.
Typical Wall Thickness: .125"
Fasteners: #10 x 1 1/2" FH Zinc Plated Wood Screws Included.
Available Finish:
- Mill Alum
- Dark Bronze Alum
Optional: SIA Slip-Resistant Finish Recommended in Moisture Prone Areas. Contact MDI for special order SIA Slip-Resistant.
Certifications:
ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
