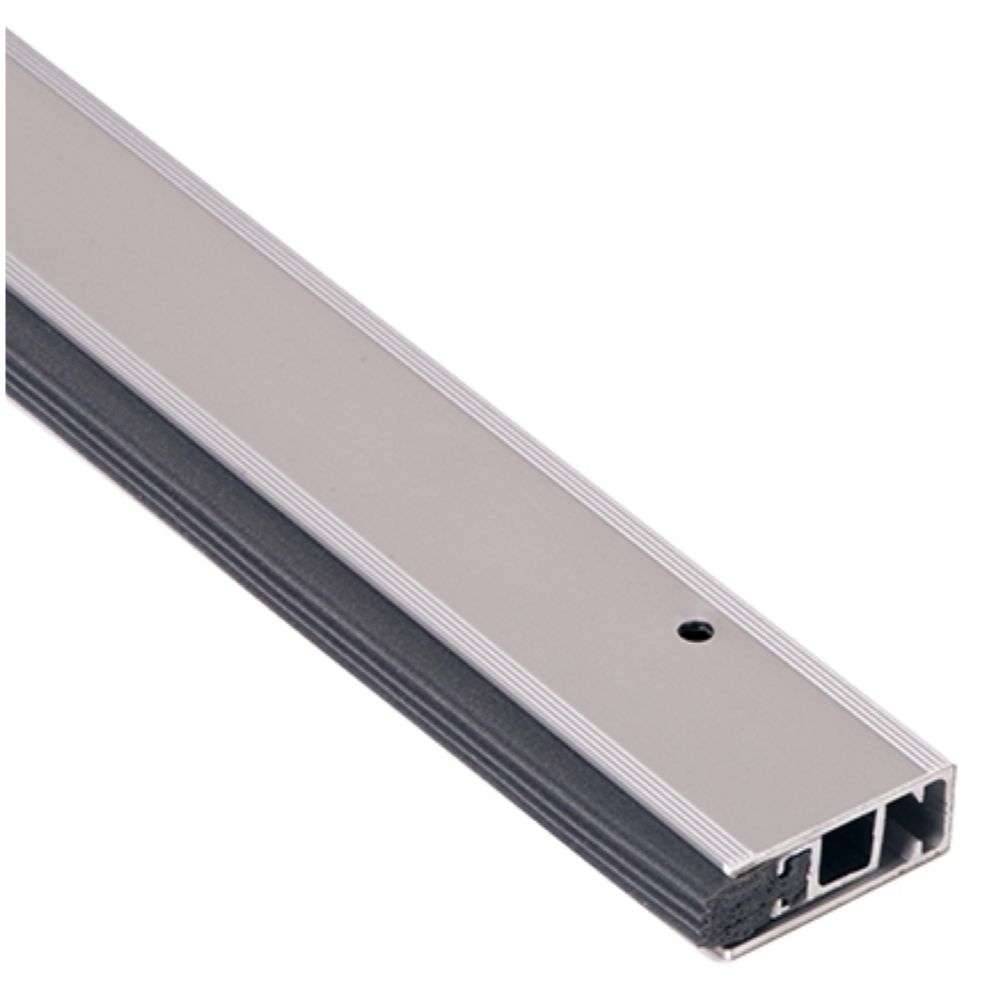

NGP 107Na Aluminum Adjust Neoprene Seal One 36 & Two 84
Designed to be applied to the “stop” perimeter of the door frame. The seal compresses against the door, to create a tight seal.
- Aluminum alloy 6063, T5 temper
- Synthetic rubber polymer blend: PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam
- Very good abrasion resistance, tensile strength and memory
- Flame resistant
- Moisture resistant
- Temperature range -20°F to 200°F
- Good resistance to ozone, sunlight and aging
- BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
- Adjustment screws on 10″ centers allow adjustment without re-positioning mounting location
- #6 x 3/4″ or #6 x 1-1/2″ stainless steel SMS furnished
- Neoprene is black
- Anodized aluminum
- excessive length shipping fee applies to sets with 96″ pieces
Standards
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B
POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C
AIR INFILTRATION TESTED to ASTM E283
ACOUSTICAL TESTED to ASTM E90
SMOKE & DRAFT CONTROL GASKETING
ANSI/BHMA CERTIFIED
