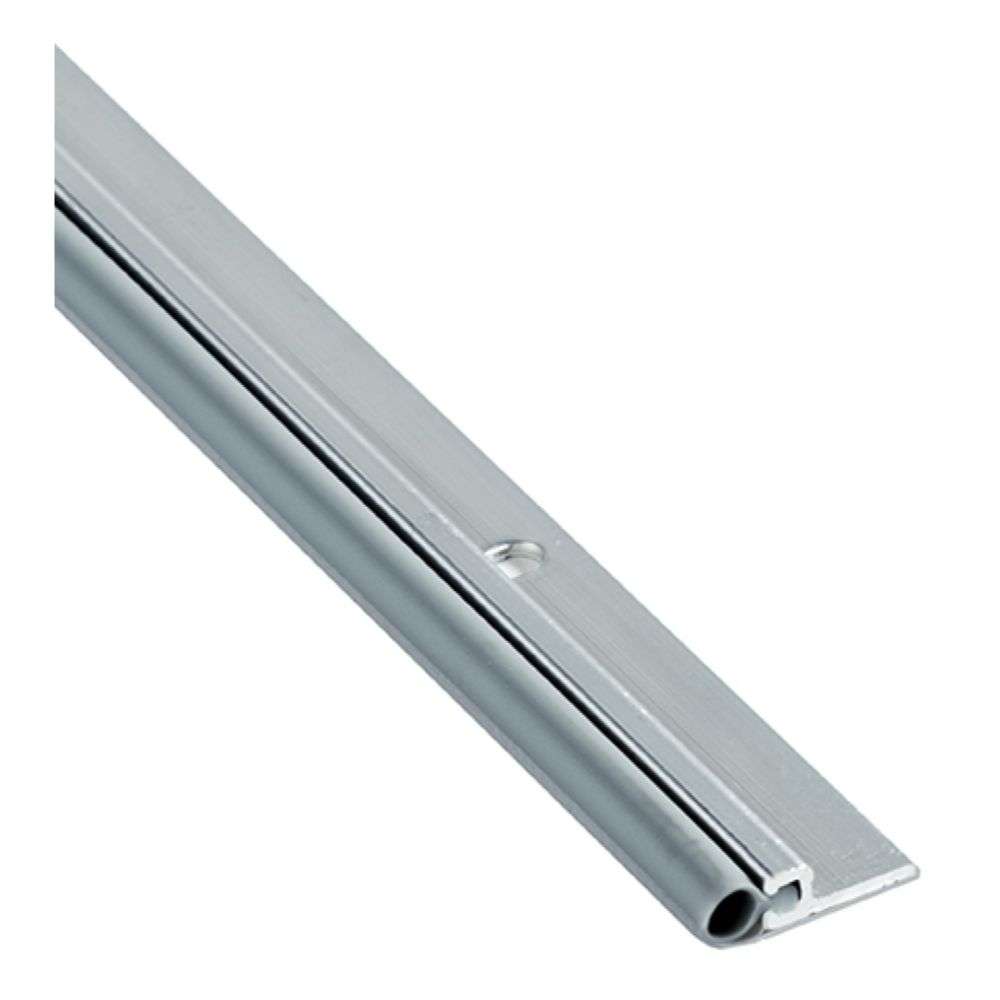

NGP 155V Mill Aluminum Vinyl Perimeter Seal One 36 Two 84
Designed to be applied to the “stop” perimeter of the door frame. The seal compresses against the door, to create a tight seal.
- Aluminum Alloy 6063, T5 Temper
- Thermoplastic Polymer: Polyvinyl Chloride Formulated With an Environmentally Friendly Bio-Based Plasticizer
- Economical
- Flame-Resistant
- Moisture-Resistant
- Temperature Range 0°F to 140°F
- Oxidative Degradation From Age and Exposure to Cold, Heat and UV Causes Hardening, Loss of Memory and Resilience, Cracking, Crazing and Discoloration
- #6 x 3/4″ Stainless Steel Sheet Metal Screws Furnished
- Screw Holes Slotted for Adjustment
- Vinyl is Black
- Available Sizes: 36″ x 84″ Set, 48″ x 84″ Set, 72″ x 84″ Set and *96″ Single Piece (add 3 for 96″ x 96″ Frame)
- Full-Length; Field-Cut to Size
- *excessive length shipping fee applies
Standards
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B
POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C
AIR INFILTRATION TESTED to ASTM E283
ANSI/BHMA CERTIFIED
