AUTOMATIC DOOR BOTTOM, 36"

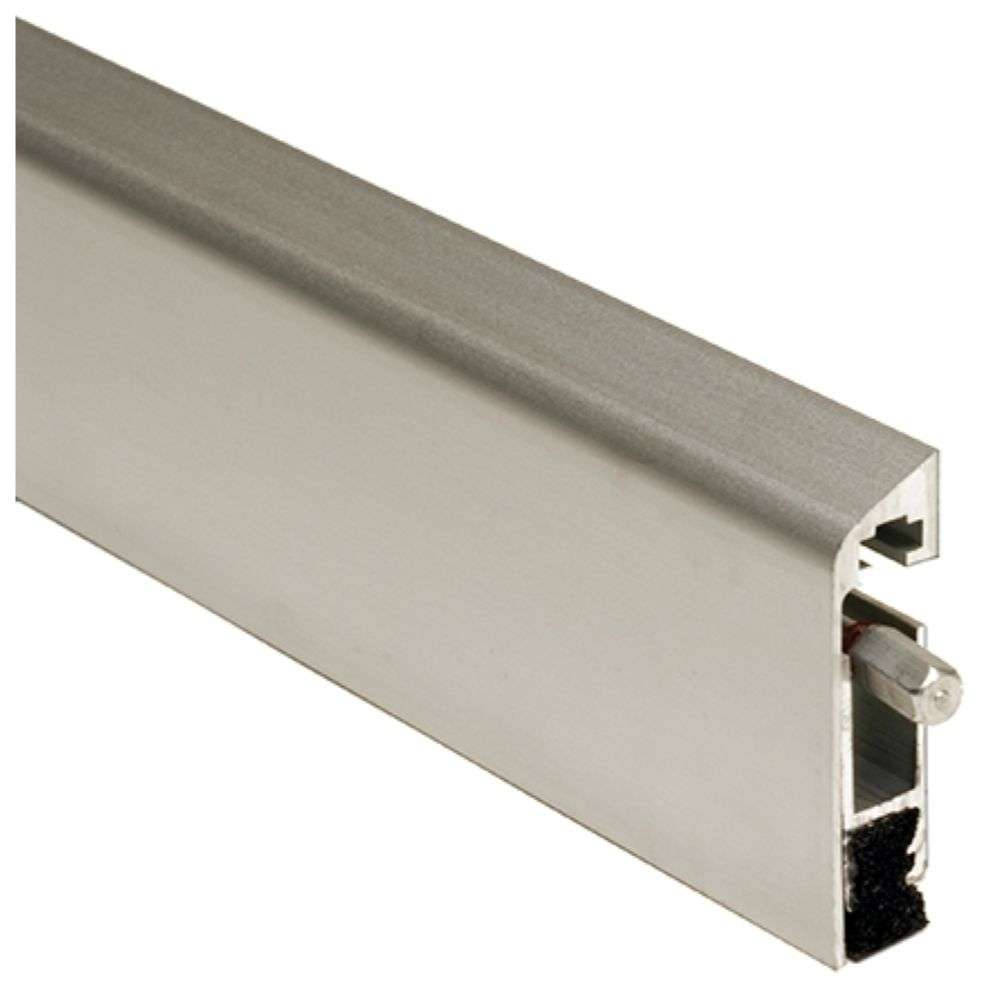

NGP 220NA-36 Alum Automatic Door Bottom Neoprene Seal 36In

US$42.50

Qty:

Description:

NGP 220NA-36 Alum Automatic Door Bottom Neoprene Seal 36In

BHMA certified to ANSI/BHMA A156.22, 1,000,000 cycle test-grade 1
BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold
Aluminum alloy 6063, T5 temper
Synthetic rubber polymer blend: PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam
Very good abrasion resistance, tensile strength and memory
Flame resistant
Moisture resistant
Temperature range -20°F to 200°F
Good resistance to ozone, sunlight and aging
Mounts on push side of door
Use with a threshold for maximum sealing capability
Nylon brush recommended for carpet applications where no threshold is provided
Specify exact net length required to avoid field sizing
36″ and longer may be cut up to 4″ in the field, under 36″ should not be cut in the field, order net length
Minimum length 11″, maximum length 60″
End caps furnished standard
Door bottom is handed. Right hand supplied unless specified. Units under 36″ NOT field reversible. Please specify handing
7/8″ max drop
Neoprene is black
Anodized aluminum
