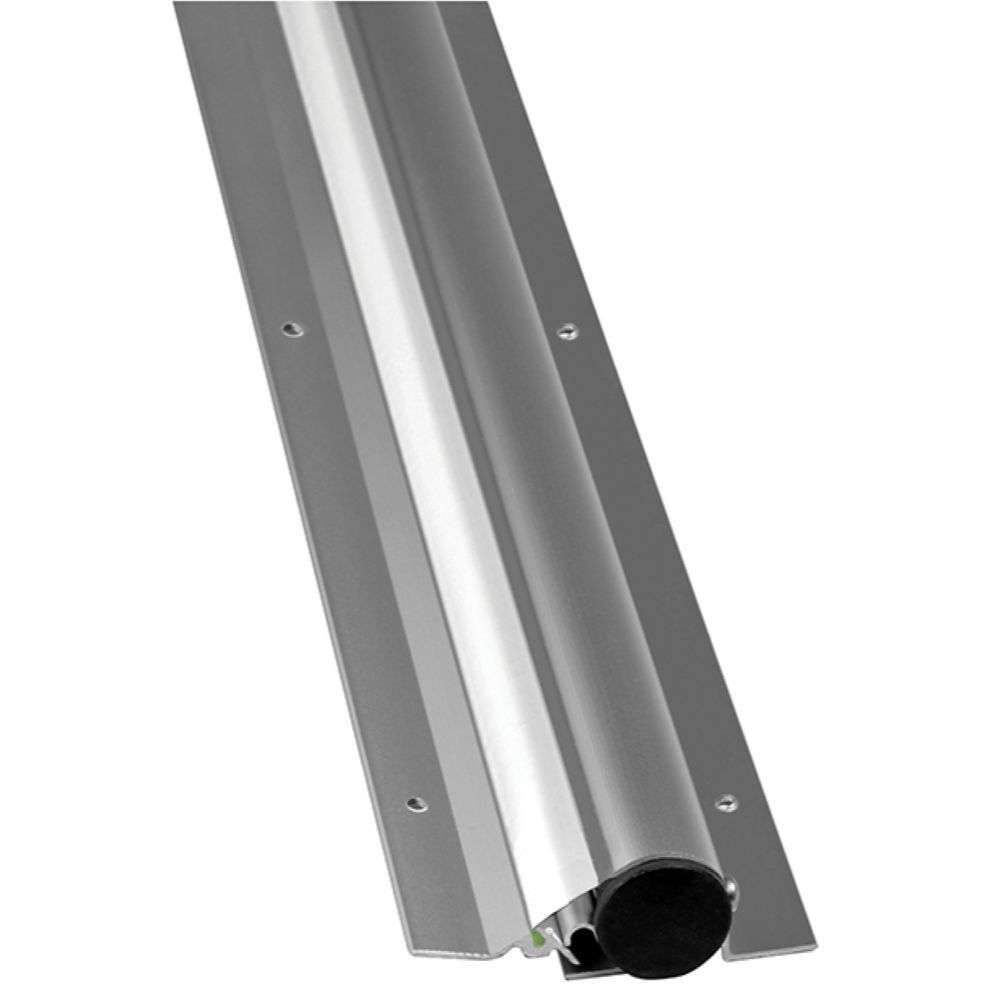

NGP 2248A-76 Anodized Alum Spring Load Push Finger Guard 76
Product Features
- Designed to help prevent injury to fingers accidentally placed in the hinge area of a door
- Features an internal spring mechanism that maintains constant tension against the polyethylene fabric which helps prevent fingers from entering the dangerous area behind the edge of the door
- Ideal for senior & childcare facilities
- Anodized aluminum housing
- Durable “endless cycle” spring mechanism
- Fire resistant woven polyethylene fabric
- 82" for 7' door opening
- 38" dutch door size
- Custom lengths 12" up to 86" available. Order 2" less than opening height to allow for the stop on the door frame head and door bottom undercut
- Not field sizable
- Mounts on push side of door
- Suitable for doors swinging up to 180 degrees
- #6 x 1/2" Tek self-drilling screws furnished
- 38" standard length
- Fire rated up to 3 hours metal doors, 1 hour wood doors
- Aluminum clear anodized w/ white polyethylene
Standards
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 1 hour.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 1 hour.
Options
Available in 38", 76", 82" and 86" standard lengths
