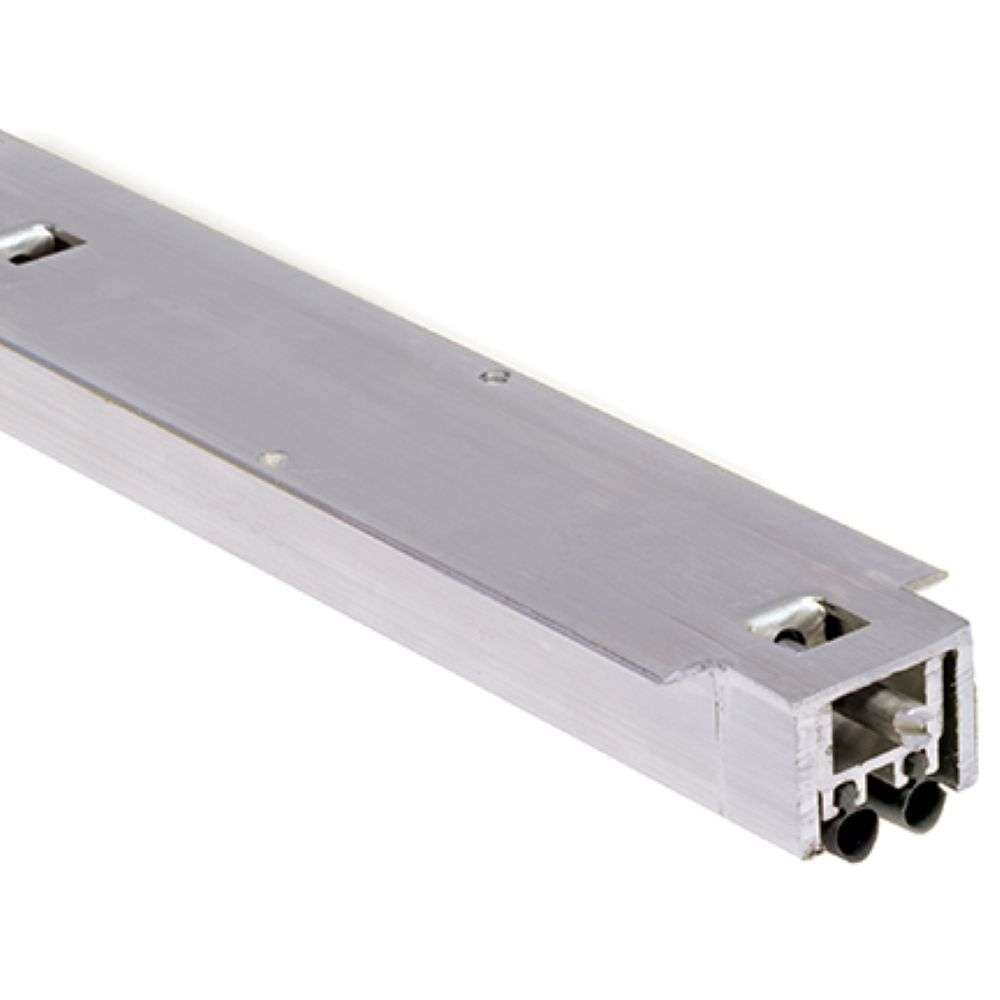

NGP 320N-36 Mill Alum Metal Mortise Auto Door Bottom Seal 36

NGP 320N-36 Mill Alum Metal Mortise Auto Door Bottom Seal 36

• Aluminum alloy 6063, T5 temper
• Thermo-Plastic Vulcanizate (TPV)
• Very good abrasion resistance, tensile strength and memory
• Flame resistant
• Moisture resistant
• Temperature range -80°F to 275°F
• Good resistance to ozone, sunlight and aging
• Fits in 1-5/8″ x 3/4″ channel. A “furring strip” may be used to lower automatic door bottom when a deeper channel is used
• Furnished 1/2″ shorter than ordered to fit within net door size. (i.e. 36″ is furnished 35-1/2″) Length may be field cut up to 4″
• Fire ratings apply to metal doors only
• #4 x 5/8″ SMS furnished
• End caps not available
• Available 24″ to 48″ in length
• 1/2″ max drop
• NGP-TPV is black
• Mill aluminum
