AUTO DOOR BOTTOM, 36"

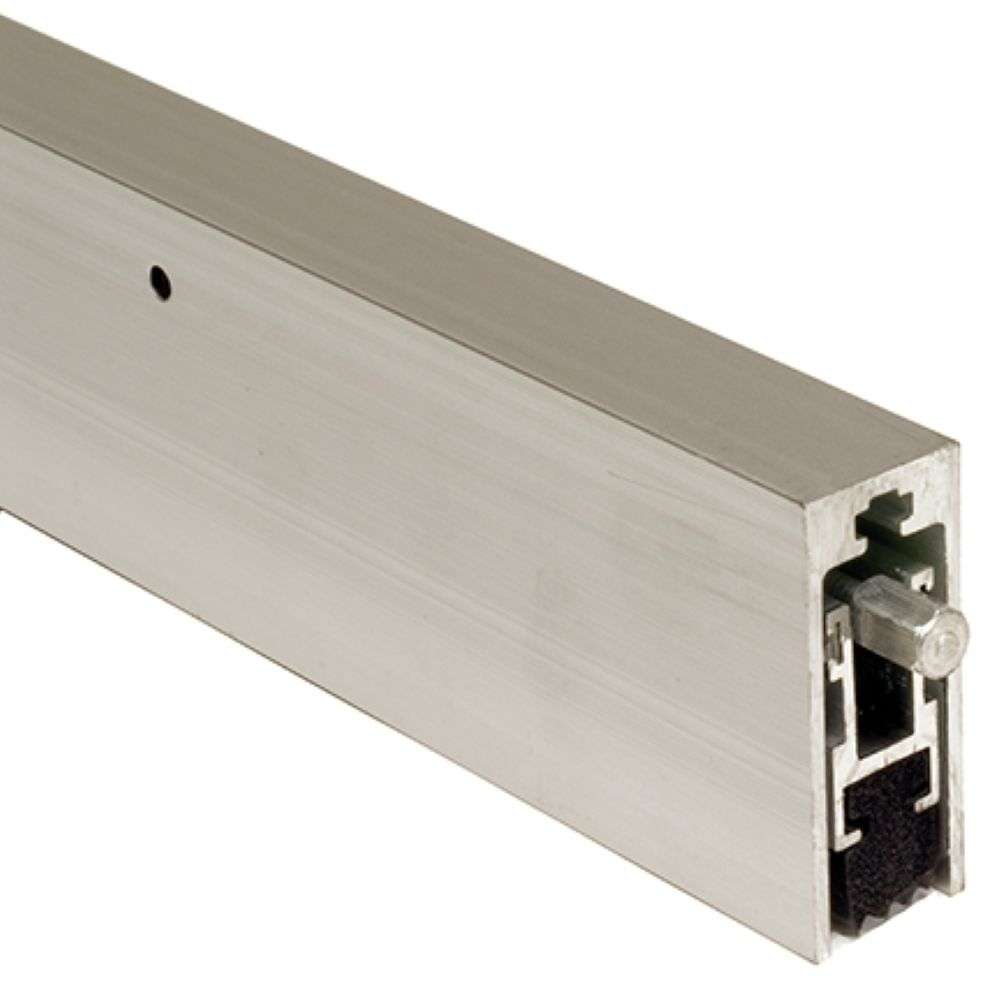

NGP 420NA-36 Alum Heavy Duty Automatic Door Bottom Seal 36In

• Automatic Door Bottom with Neoprene Insert
• Heavy Duty
• Length: 36"
• Max Drop: 7/8"
• Material: Aluminum
• Finish: Clear Anodized
• Insert : Black Neoprene
• Surface Mount
• Smoke and Draft Control-UL Classified Category H
• UL 10B Classified on wood doors up to 90 min.
• UL 10B Classified on metal doors up to 3 hr.
• UL 10C Classified on wood doors up to 90 min.
• UL 10C Classified on metal doors up to 3 hr.
• Acoustical Tested
• Air Infiltration Tested
• ANSI/BHMA Certified
• Use with a threshold for maximum sealing capability
• Nylon brush recommended for carpet applications where no threshold is provided
• Specify the exact net length required to avoid field sizing. Automatic Door Bottoms 36" and longer may be cut up to 4" in the field, under 36" should not be cut in the field, order net length
• End caps furnished standard
• Lead insert available for radiation shield. For further information please contact sales
