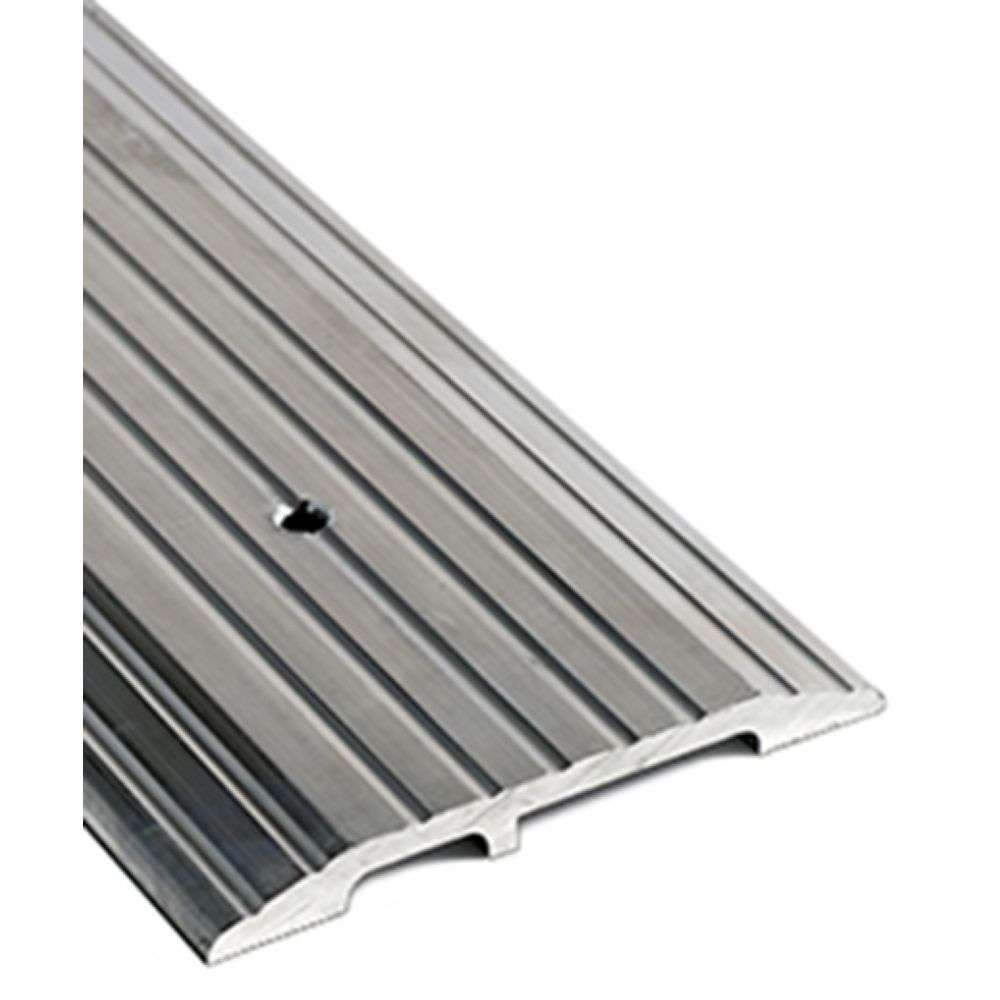

NGP 425HD-48 Heavy Duty Aluminum Saddle Threshold 1/2x5x48
For use where forklift or vehicular traffic occurs
Recommended for delivery/storage doorways where heavier loads travel. It can accomodate up to 10,000 lbs.
Width: 5"
Height: .5" (1/2")
Length: Custom cut to size.
Weight: 1.6 lbs/ft.
Typical Wall Thickness: .244"
Compliance Details: ADA Compliant, UL Listed, ANSI/BHMA Certified, Positive Pressure Certified.
Installation: See Installation Guide tab.
If threshold is being drilled into concrete, an Expansion Anchor is recommended.
#10 x 1-1/2" FH zinc plated wood screws included, DKB supplied with DKB threshold.
Drilling: Threshold is drilled along the center line in standard factory locations.
Options (Can be purchased through our office at 845-388-1300):
Slip-Resistant Finish - recommended in moisture prone areas
