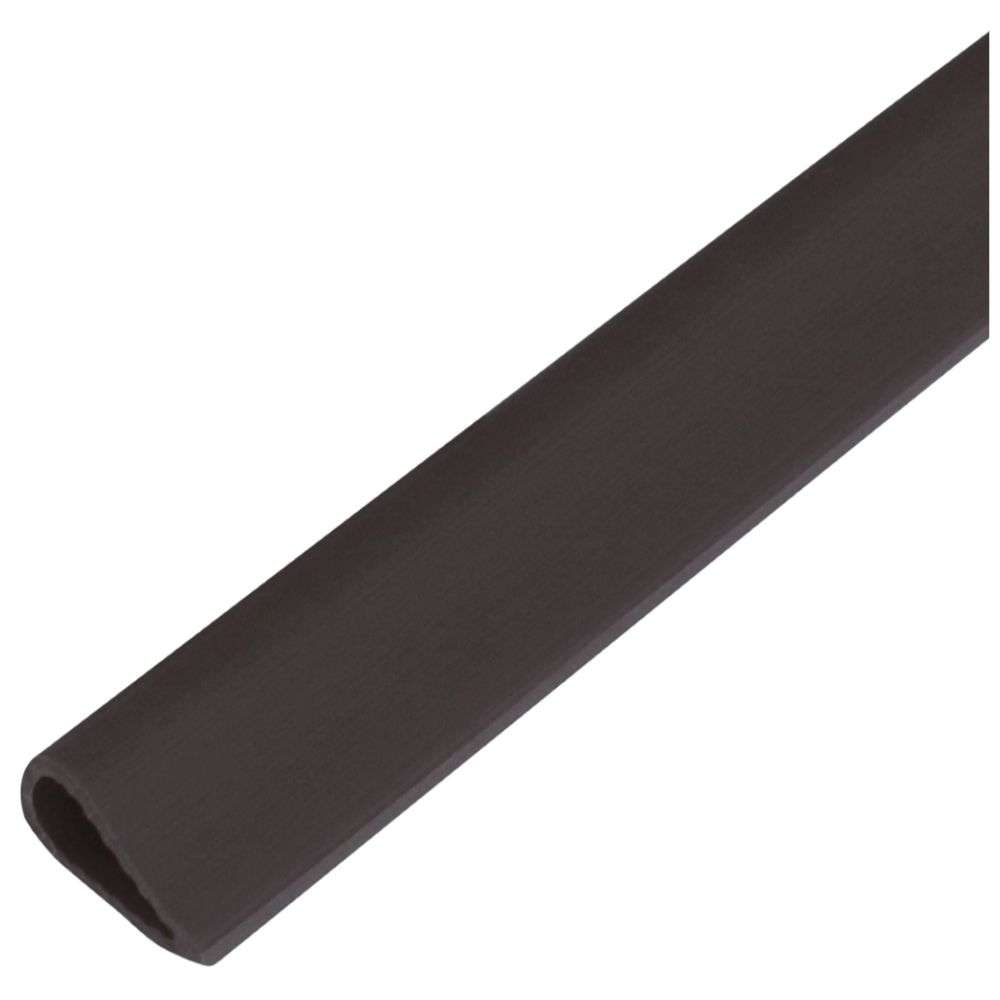

NGP 5050C-300 Blk Adhesive Teardrop Smke Seal 1 Ea Roll 300'

NGP 5050C-300 Blk Adhesive Teardrop Smke Seal 1 Ea Roll 300'

• Synthetic rubber polymer: Siloxane
• Self-Adhesive
• Excellent flexibility and memory
• Flame resistant
• Moisture resistant
• Temperature range -100°F to 500°F, remains flexible at extreme temperatures
• Excellent resistance to ozone, UV and aging
• Recommended for areas using FM200 or Halon Fire Suppression Systems
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold and air infiltration
• Modified acrylic pressure sensitive adhesive protected by release liner
• Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
• Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
• End use temperature range of adhesive, long term exposure -30°F up to 250°F
• Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
• Edge Sealing System – category “G” for 20 minute rated category B wood doors perimeter application up to: single swing 4’0 x 8’0, pairs 8’0 x 8’0. Use 9550 at the meeting edge of pairs
• Smoke and draft control – category “H”, up to 3 hours hollow metal fire doors, up to 90 minutes wood fire doors
• Meets requirements of RoHS directive
• 1/2″ wide x 1/4″ tall
• Available in 17′, 25′ and 300′ rolls
• Charcoal
