HEAD AND JAMB GASKETING 36"

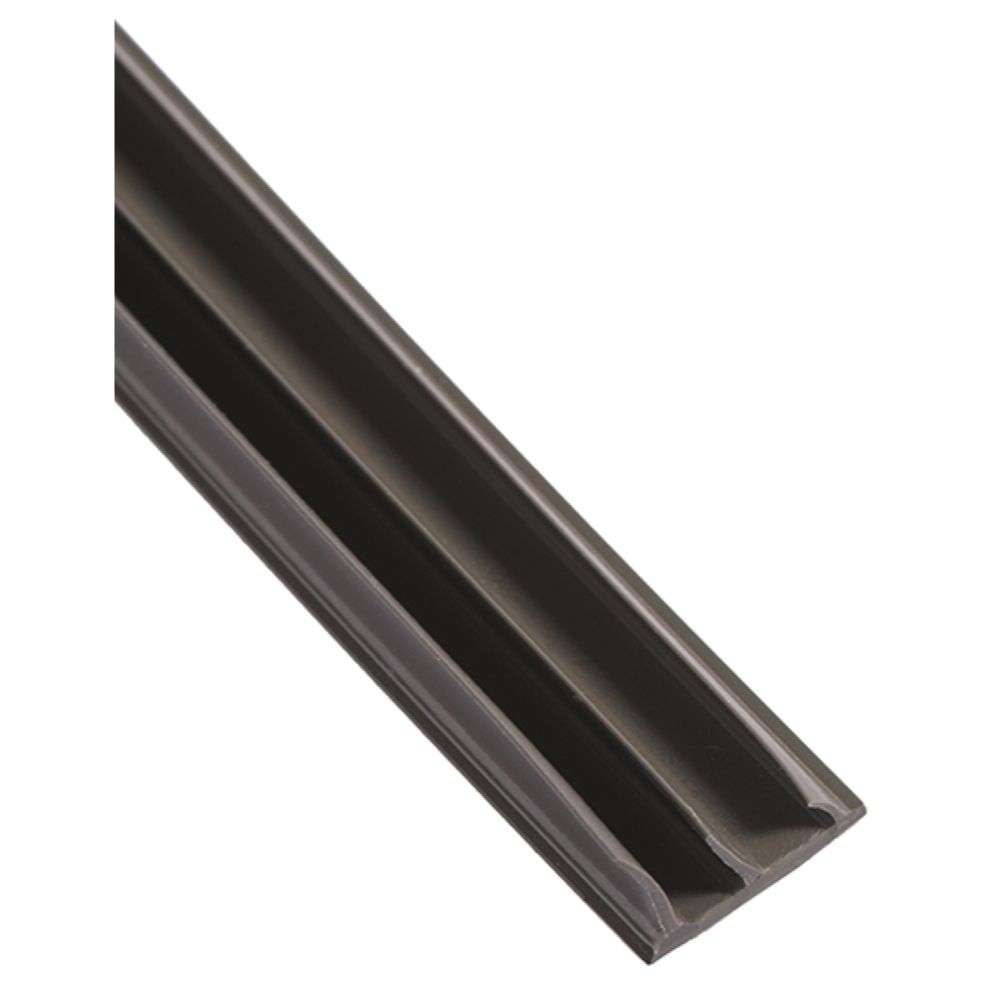

NGP 5075C-36 Black Adhesive Tpe Triple Fin Smoke Seal 36

• Self-Adhesive Thermo-Plastic Elastomer (TPE)
• Good Abrasion Resistance
• Moisture Resistant
• BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold, Air Infiltration, and Energy Performance
• Rigid Base with Flexible Elastomeric Fins
• Flame Resistant
• Temperature Range -60°F To 275°F
• Anti-Microbial: Treated with an Anti-Microbial Additive to Inhibit the Growth of Microorganisms
• REACH and RoHS Compliant
• Modified Acrylic Pressure Sensitive Adhesive Protected by Release Liner
• Provides High Initial Adhesion and Long Term Holding Power for Permanent Mounting in Exterior or Interior Locations
• Resistant to Aging, Weathering, UV Radiation, Water, Detergent, Alcohol, and the Influence of Chemicals
• End Use Temperature Range of Adhesive, Long Term Exposure -30°F Up To 250°F
• Shelf Life of Adhesive Prior to Installation is One Year When Stored at 75°F and 50% Relative Humidity or Less
• 1/2″ Wide x 3/8″ Tall
• Available in 36″, 48″, 72″, 84″, and 96″ Lengths (order 3 pieces for one opening – size by opening width x height – ex. 3′ x 7′ opening requires 1ea. 36″ piece and 2ea. 84″ pieces)
• Charcoal
