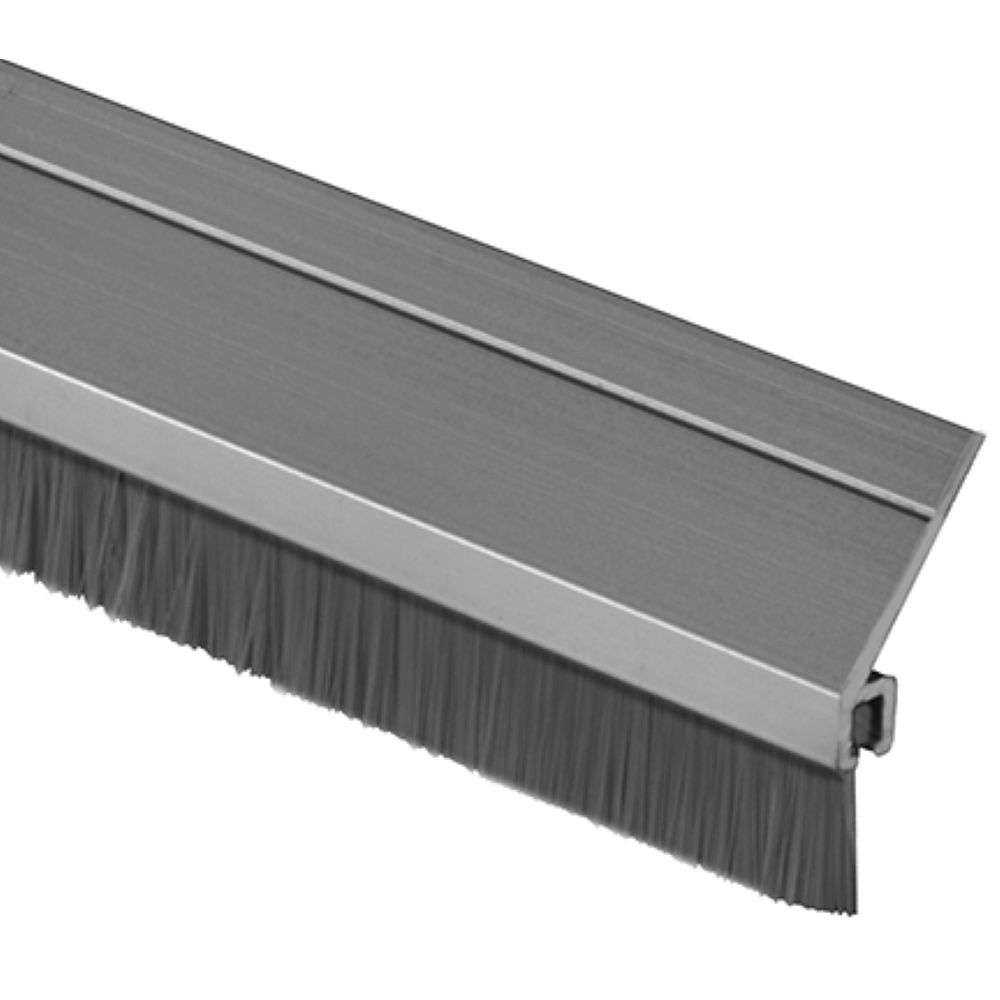

NGP A626A Alum 7/16 Angled Grey Brush Sweep One 36 Two 84
Perimeter Seal with Nylon Brush Insert
Length: 26"
Height:3/4"
Material: Aluminum
Finish: Clear Anodized
Insert:
Projection: 7/16"
Color: Gray
Material: Nylon Brush
Synthetic polymer: Polyamide
- Excellent abrasion resistance, flexibility and memory
- Moisture resistant
- Retains insecticides well
- Temperature range -70°F to 160°F
BHMA Certified to ANSI/BHMA A156.22 Performance tests for Heat, Cold, Air Infiltration and Smoke Infiltration in most common profiles as indicated by BHMA Certified symbol.
Not effective against water penetration.
Mounting: #6 x 3/4” Stainless Steel Sheet Metal Screws furnished
Screw holes slotted for adjustment.
Smoke and Draft Control-UL Classified Category H
- UL 10B Classified on wood doors up to 90 min.
- UL 10B Classified on metal doors up to 3 hr.
- UL 10C Classified on wood doors up to 90 min.
- UL 10C Classified on metal doors up to 3 hr.
Air Infiltration Tested
ANSI/BHMA Certified
