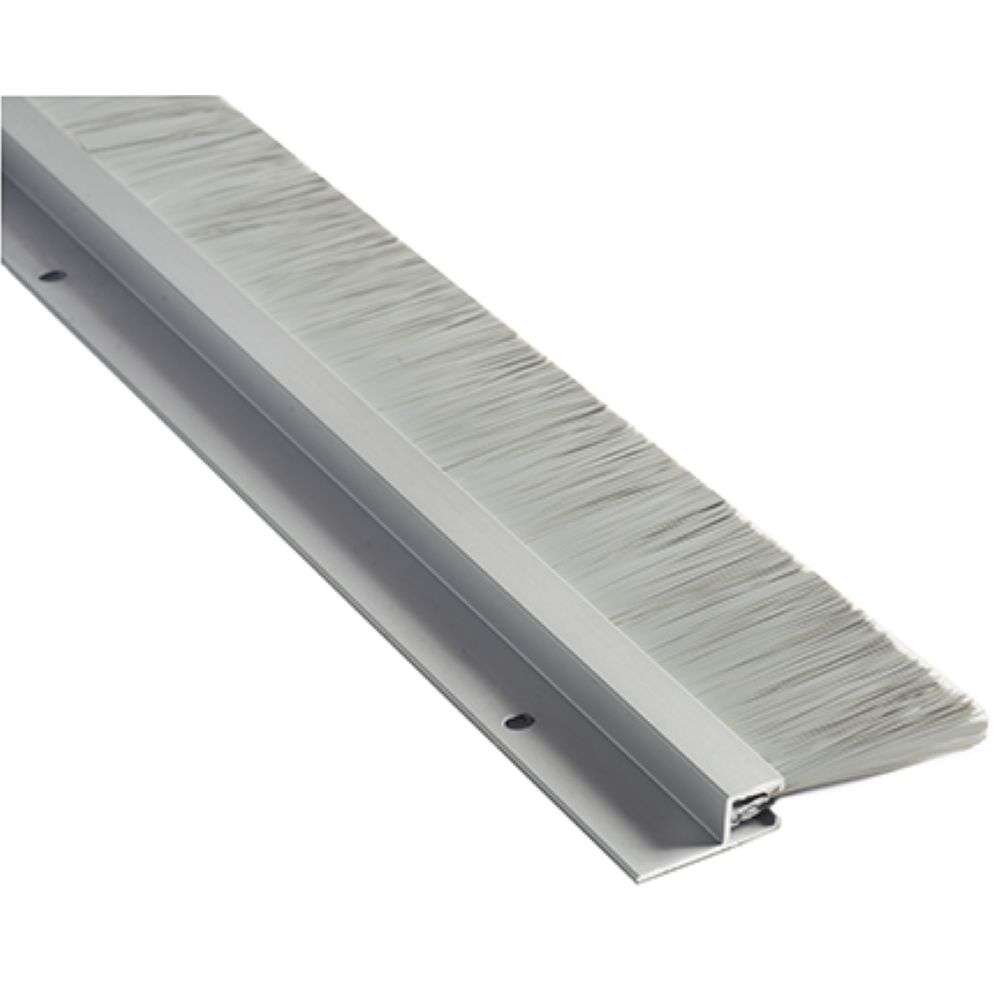

NGP G610A-48 Aluminum With 1-3/4 Grey Nylon Door Sweep 48

NGP G610A-48 Aluminum With 1-3/4 Grey Nylon Door Sweep 48

• Aluminum alloy 6063, T5 temper
• Synthetic polymer: Polyamide
• Excellent abrasion resistance, flexibility and memory
• Moisture resistant
• Retains insecticides well
• Temperature range -70°F to 425°F
• Door Sweep application is Category H Smoke & Draft Control
• REACH and RoHS compliant
• Not effective against water penetration
• #6 x 3/4" stainless steel sheet metal screws furnished
• Screw holes slotted for adjustment
• Nylon brush is gray
• Anodized aluminum

Standards

• CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• SMOKE & DRAFT CONTROL GASKETING. Door Sweep Application only. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
