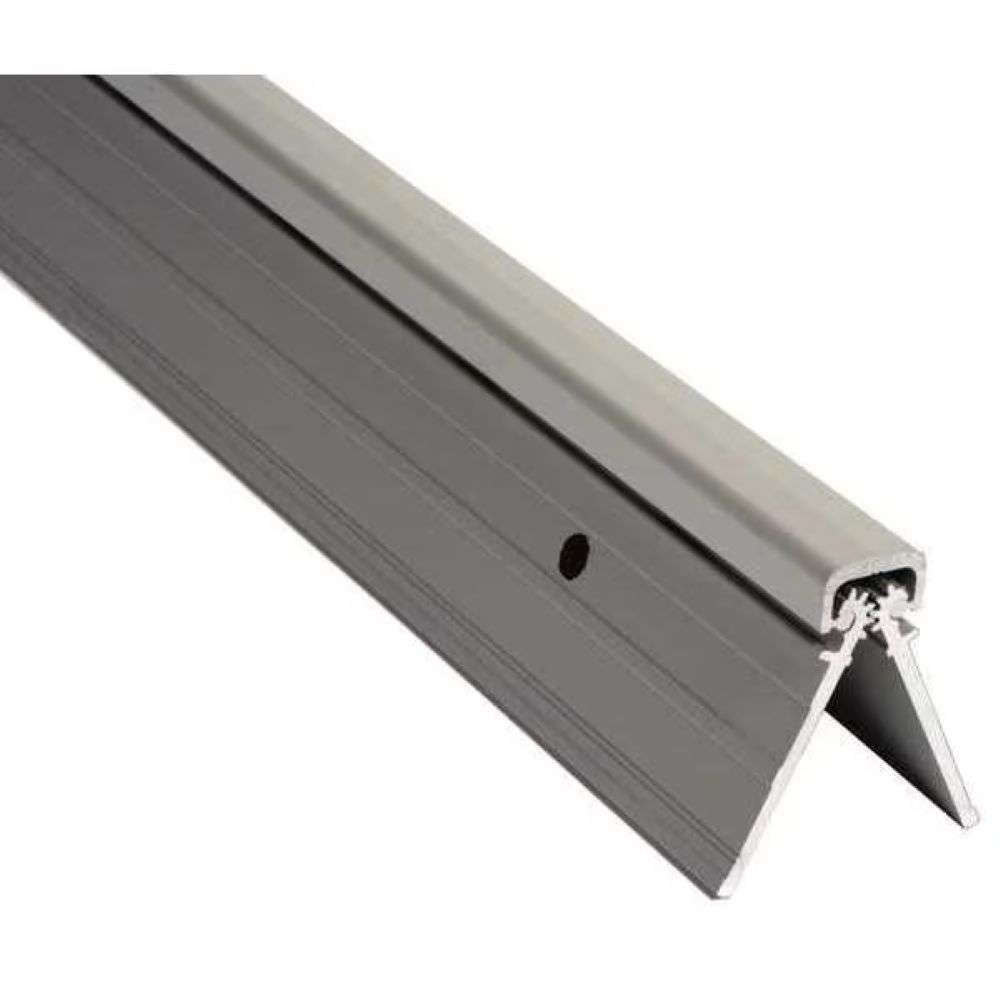

NGP HD1100A-83 Full Mortise Conceal Alum Hinge Clear 83 Long
Product Features
- Aluminum alloy 6063-T6; Anodized after machining
- Anodized aluminum finish
- Specially designed involute intermeshing gears
- Proprietary teflon infused self-lubricating wear resistant bearings
- No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
- Lifetime of the door opening warranty
- #12-24 TEK MS
- “LL” model for doors up to 1,000 lbs. features lead-lined dual row hole pattern
- Standard lengths: 83", 85", 95", 119
- Note: For Door Sizing Refer to Installation Instruction
Standards
ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 600 lb. door.
Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0
Options
- #12 x 1-1/2" wood screws
- Torx security TEK screws
- 1-1/2" Torx Security Wood Screws
- Cut to net length
- Anti-ligature hospital tip - specify “ALHT”
- Dutch Door Prep - Order Form Available at ngp.com
- ETW-8 Electric Thru Wire
- ETW-8-MOLEX Electric Thru Wire with Molex Connectors
