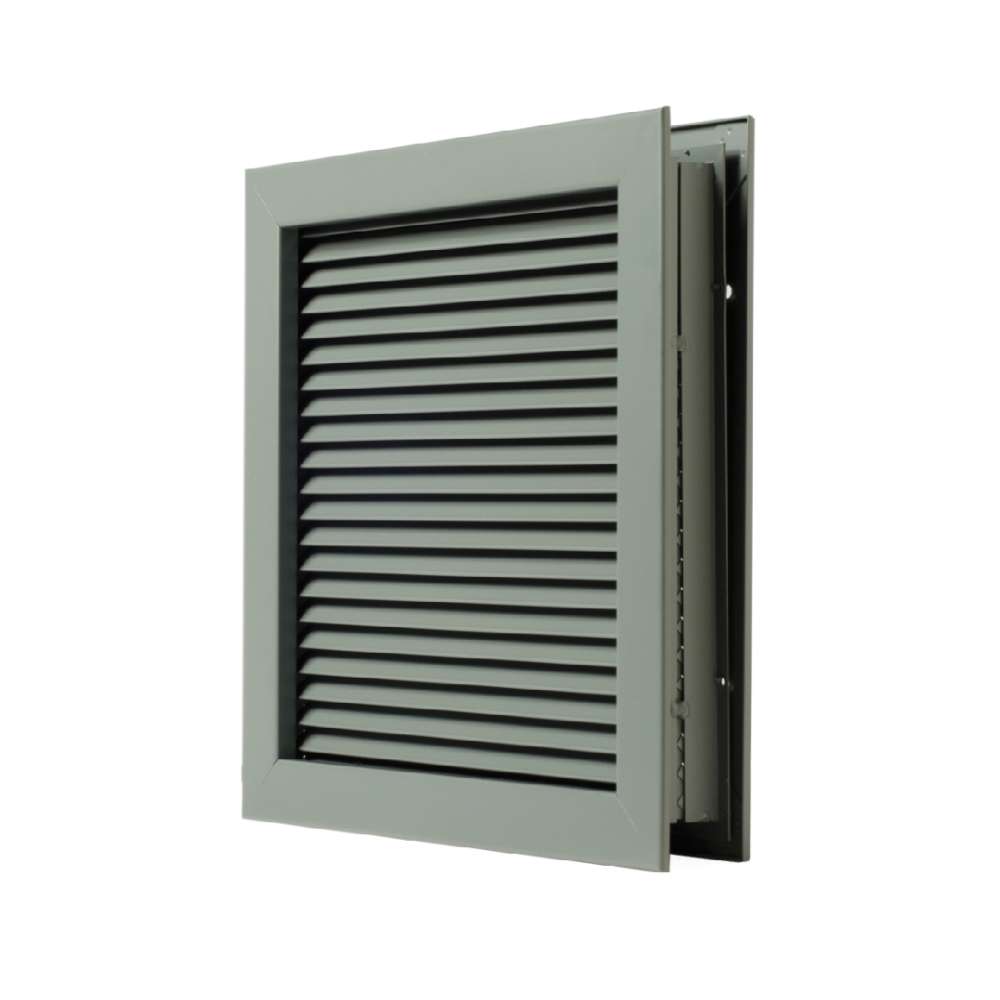

NGP L-700-Rx-GPZ-24-12 Self Attach No Vision Louver Grey
- 18 gauge cold rolled steel
- Self Attaching, No Vision
- Mitered and welded corners
- Welded reinforcing clips at corners
- Inverted design
- Blades 24 gauge steel; hemmed edges
- Counter-sunk mounting screw-holes
- #8 x 3/4" Phillips head SMS
- Available in uneven and fractional sizes
- Free area 55% Gray Primer (GPZ) powder coat finish
- Ease of assembly
Dimensions and Prep
- Door Cut Out = 24" x 12"
- Tip to Tip Frame = 25" x 13"
Includes
Frame
Screws (#8 x 1-12")
Specifications for NGP L-700-RX-24x60 Louver Kit
Door Cut Out Width: 24"
Door Cut Out Height: 60"
Frame Projection Off Door: 3/16"
Door Thickness: 1-3/4" Thick Door
Installation Screws: #8 x 3/4" Phillips head SMS
