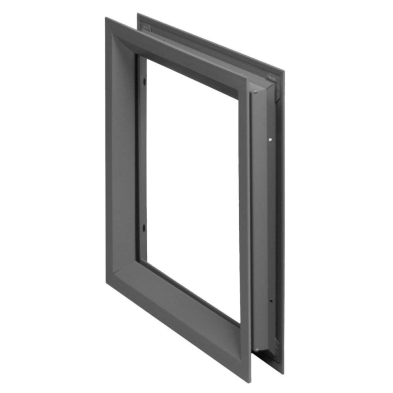

NGP L-FRA100-PYRANF-GT118-7-22 Low Profile 1/8 Glazing Grey

NGP L-FRA100-PYRANF-GT118-7-22 Low Profile 1/8 Glazing Grey

Product Features

• For 1-3/4" Thick Doors and 3/16", 1/4" or 5/16" Glass
• 18 Ga. Cold Rolled Steel
• Mitered and Welded Corners
• Welded Reinforcing Clips at Corners
• Countersunk Mounting Screw-Holes
• #8 X 1-3/4" Phillips Head SMS
• Available in Uneven and Fractional Sizes
• Gray Primer (GPZ) Powder Coat Finish
• Designed for Use on 1-3/4" Thick Doors Manufactured Within Door Industry Tolerance of +/- 1/16"

• 3/16" (5mm) thick glass ceramic
• Heavy duty 7 mil durable safety film
• Neutral coloration - clear and wireless
• Advanced manufacturing process eliminates the need for surface polishing
• Etched with UL classification on each piece
• 10 year Manufacturer Warranty
• Weight: 2.5 lbs./sq. ft.
• STC 31 rating

Fire-rating information:

• Certified by UL to ANSI/UL9, ANSI/UL10B, ANSI/UL10C,  CAN/ULC-S104, ULC CAN4-S106 with closed cell PVC  foam glazing tape like NGP L-GT-116, L-GT-118, or L-GT-132

Options

• Powder Coat Color Options Available
• Torx Security Screws
• Galvanneal - A40 Steel
• Zinc Electroplating
• Glass & Glazing Tape - See Glass Section
• Lead Lining - 1/16" Thick
• Silicone Acoustical Seal Applied to Reduce Sound Transmission
• Acoustical Testing performed at Architectural Testing, Inc. to: ASTM E 90, Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions, ASTM E 413, Classification for Rating Sound Insulation, ASTM E 1338, Standard Classification for Rating Outdoor-Indoor Sound Attenuation, ASTM E 2235, Standard Test Method for Determination of Decay Rates for Use in Sound Insulation Test Methods
