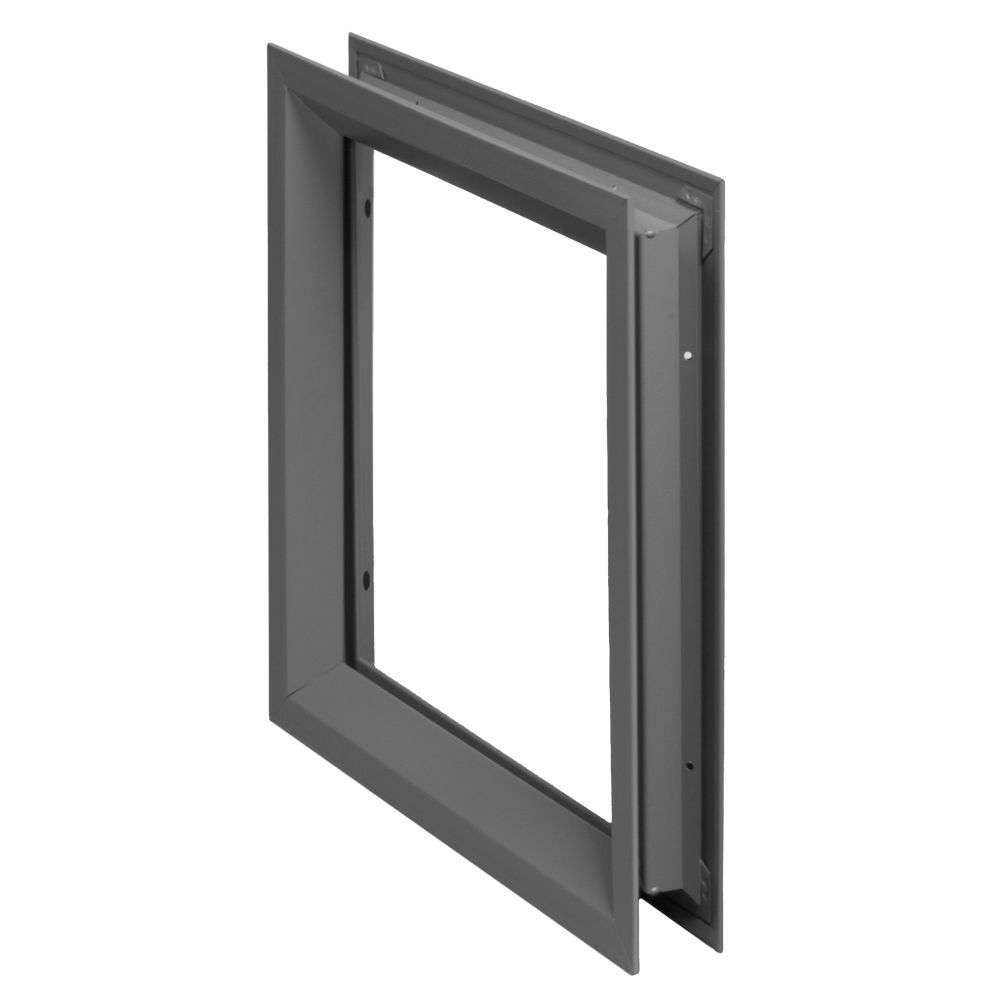

NGP L-FRA100-GPZ-7-22 Self Attach Low Profile Grey Powder
Product Features
- For 1-3/4" Thick Doors and 3/16", 1/4" or 5/16" Glass
- 18 Ga. Cold Rolled Steel
- Mitered and Welded Corners
- Welded Reinforcing Clips at Corners
- Countersunk Mounting Screw-Holes
- #8 X 1-3/4" Phillips Head SMS
- Available in Uneven and Fractional Sizes
- Gray Primer (GPZ) Powder Coat Finish
- Designed for Use on 1-3/4" Thick Doors Manufactured Within Door Industry Tolerance of +/- 1/16"
Standards
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Options
- Powder Coat Color Options Available
- Torx Security Screws
- Galvanneal - A40 Steel
- Zinc Electroplating
- Glass & Glazing Tape - See Glass Section
- Lead Lining - 1/16" Thick
- Silicone Acoustical Seal Applied to Reduce Sound Transmission
- Acoustical Testing performed at Architectural Testing, Inc. to: ASTM E 90, Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions, ASTM E 413, Classification for Rating Sound Insulation, ASTM E 1338, Standard Classification for Rating Outdoor-Indoor Sound Attenuation, ASTM E 2235, Standard Test Method for Determination of Decay Rates for Use in Sound Insulation Test Methods
