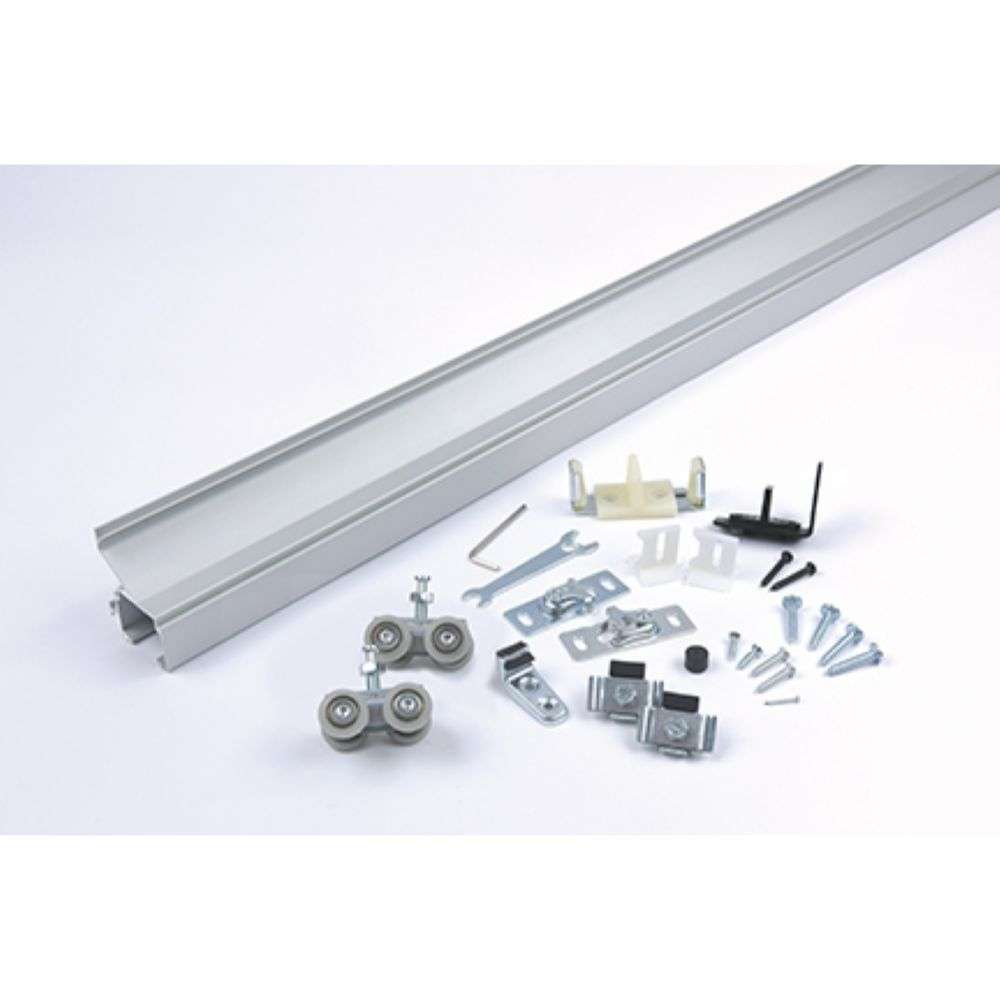

NGP SLAL-250-PDKIT-6 Alum Pocket Door Frame Kit 36x84 Open
Product Features
- Commercial Grade for 1-3/8" To 1-3/4" Doors
- For Sliding Doors up to 250 lbs. Each
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles Including Soft Close Feature
- Hangers with Heavy-Duty Ball Bearing Wheels
- Meets ADA Push Force Requirements
- 5-year Warranty
- Patent Pending
- 4" Wood or Metal Stud Application
- For up to 3/0 x 7/0 Doors
- Order Two Sets for Bi-Parting Applications
- Note: For Door Sizing Refer to Installation Instruction
Standards
ANSI/BHMA CERTIFIED. Certified Sliding Door Hardware complies with American National Standard for Sliding and Folding Door Hardware ANSI/BHMA A156.14 Grade 1 100,000 cycles and is listed in the BHMA Certified Product Directory.
Options
Soft-Close / Open – Specify “SC”. For Both Directions Order “SCBY” for Doors 120 lbs.-150 lbs. Each
Light Duty Soft-Close / Open - Specify SC-LITE. For Both Directions Order “SCBY-LITE” for Doors 65 lbs.-115 lbs. Each
Wall Mounted Bottom Guide SL-WG
Bottom Channel Guide SL-BCG
Converging Kit Used to Join Headers in Bi-Parting Openings "SLAL-CN. VG-KIT"
